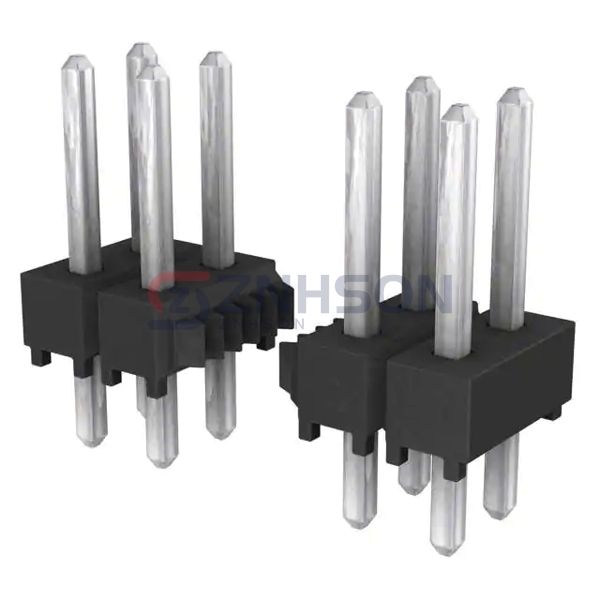

TSW-141-07-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 82POS 2.54MM
$4.13
Available to order
Reference Price (USD)
1+
$3.79000
10+
$3.63700
25+
$3.33360
50+
$3.18220
100+
$3.03070
250+
$2.65188
500+
$2.57612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-141-07-T-D male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 82
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: 0.430" (10.92mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-124-24LF
Samtec Inc.
TSM-131-01-T-DV
Samtec Inc.
TMMH-137-01-G-D
Amphenol ICC (FCI)
98424-F52-10ALF
TE Connectivity AMP Connectors
2029054-3
Samtec Inc.
FTS-107-01-FM-DV-P-TR
Preci-Dip
800-10-038-10-002101

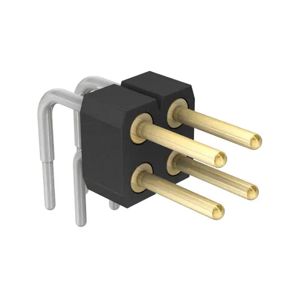

Preci-Dip
802-V3-004-20-001101

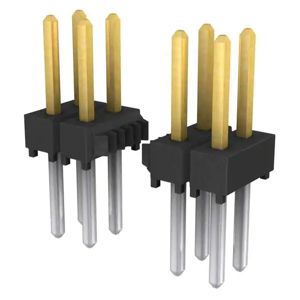

Samtec Inc.
