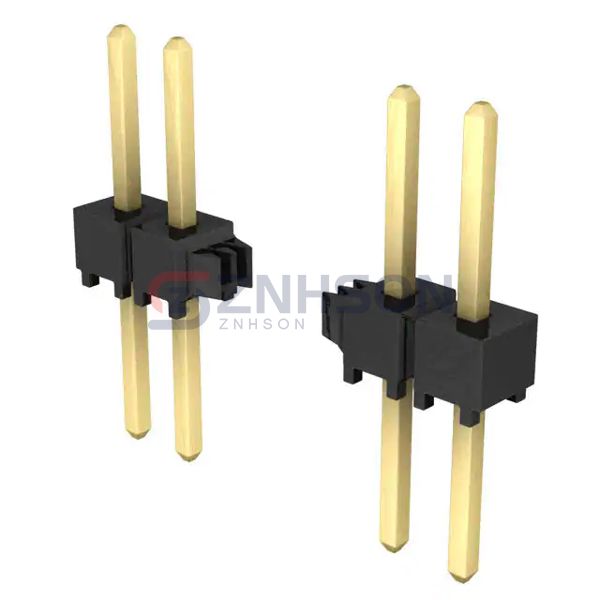

TSW-141-08-G-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 41POS 2.54MM
$3.91
Available to order
Reference Price (USD)
1+
$3.57000
10+
$3.42400
25+
$3.13880
50+
$2.99620
100+
$2.85360
250+
$2.49692
500+
$2.42556
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-141-08-G-S by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 41
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.200" (5.08mm)
- Overall Contact Length: 0.530" (13.46mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-117-01-L-D-SM-A-TR
Preci-Dip
894-70-096-20-001101
Sullins Connector Solutions
SBH21-NBPN-D08-ST-BK
Preci-Dip
802-80-064-20-001101
3M
929834-03-24
TE Connectivity AMP Connectors
5149009-1
Hirose Electric Co Ltd

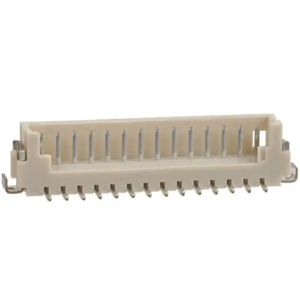

DF13C-14P-1.25V(21)
Samtec Inc.

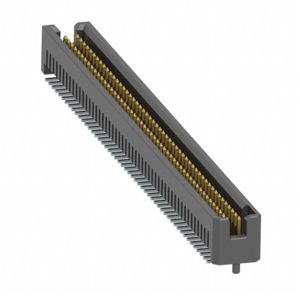

TFM-150-02-L-D-A-P
Amphenol ICC (FCI)

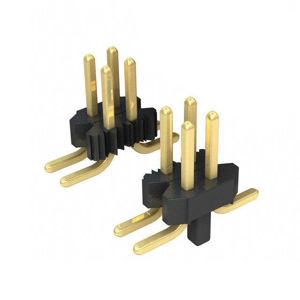

20021121-00014C1LF
