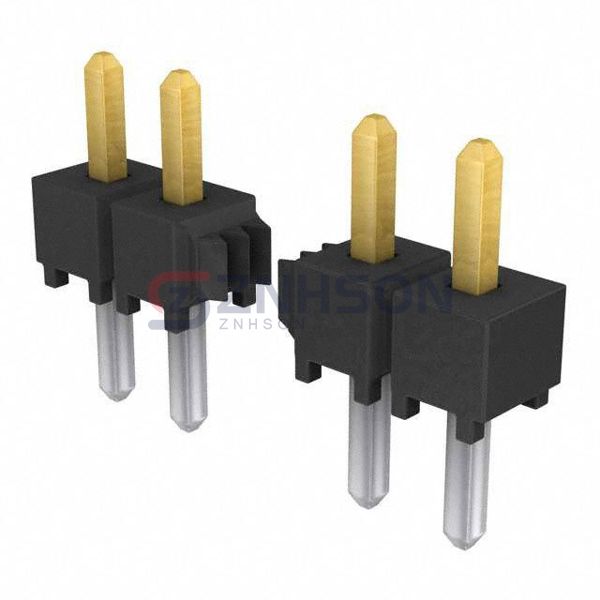

TSW-142-05-S-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 42POS 2.54MM
$5.51
Available to order
Reference Price (USD)
1+
$5.51000
10+
$4.92800
100+
$4.05850
500+
$3.20814
1,000+
$2.75397
5,000+
$2.51239
10,000+
$2.41576
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSW-142-05-S-S rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TSW-142-05-S-S adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.335" (8.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
