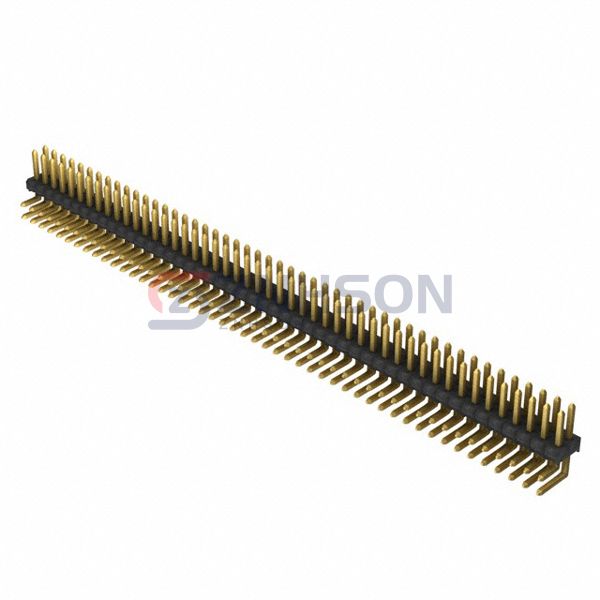

TSW-148-08-G-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 96POS 2.54MM
$9.27
Available to order
Reference Price (USD)
1+
$8.45000
10+
$8.08500
25+
$7.34960
50+
$6.98220
100+
$6.79850
250+
$6.06356
500+
$5.69606
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the TSW-148-08-G-D-RA rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the TSW-148-08-G-D-RA adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 96
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
1723103303
Molex
0353182020
Amphenol ICC (FCI)
68001-401HLF
Amphenol ICC (FCI)
77313-183-72LF
NorComp Inc.
27631802RP2
3M
929834-07-12
Samtec Inc.
TFC-110-01-F-D-A-K
Molex
22-28-0080
3M

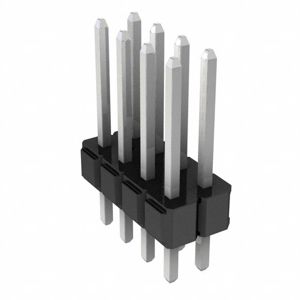

929710-11-04
