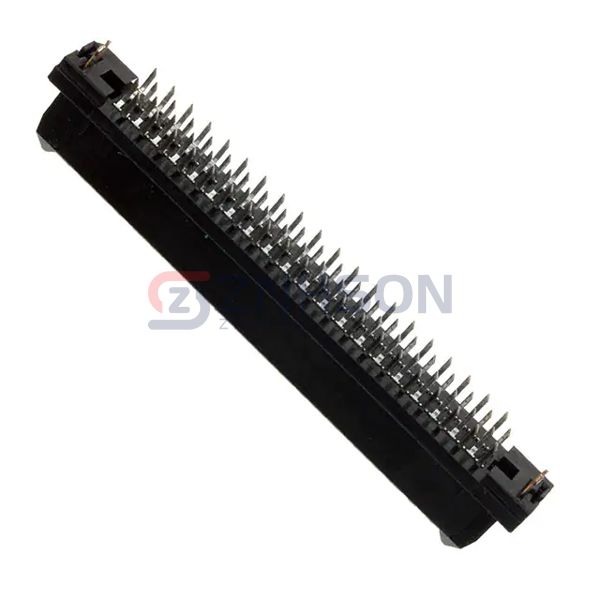

TX24-80R-6ST-H1E
JAE Electronics
JAE Electronics
CONN RCPT 80POS VERT GOLD
$2.73
Available to order
Reference Price (USD)
1+
$2.51000
10+
$2.27900
25+
$2.13920
50+
$2.04600
100+
$1.95300
432+
$1.76699
864+
$1.58100
1,296+
$1.39500
2,592+
$1.30200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TX24-80R-6ST-H1E by JAE Electronics is a cutting-edge rectangular connector designed for array and edge-type board-to-board applications. Its mezzanine configuration supports high-speed signal transmission and power delivery in compact spaces. These connectors are widely used in consumer electronics, automotive systems, and industrial equipment. For example, they are essential in smartphones, electric vehicle control units, and CNC machines. With TX24-80R-6ST-H1E, you get a connector that combines advanced technology with unmatched durability for your most demanding projects.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Outer Shroud Contacts
- Number of Positions: 80
- Pitch: 0.050" (1.27mm)
- Number of Rows: 2
- Mounting Type: Through Hole
- Features: Board Lock
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 12mm, 14mm, 18mm
- Height Above Board: 0.406" (10.30mm)
