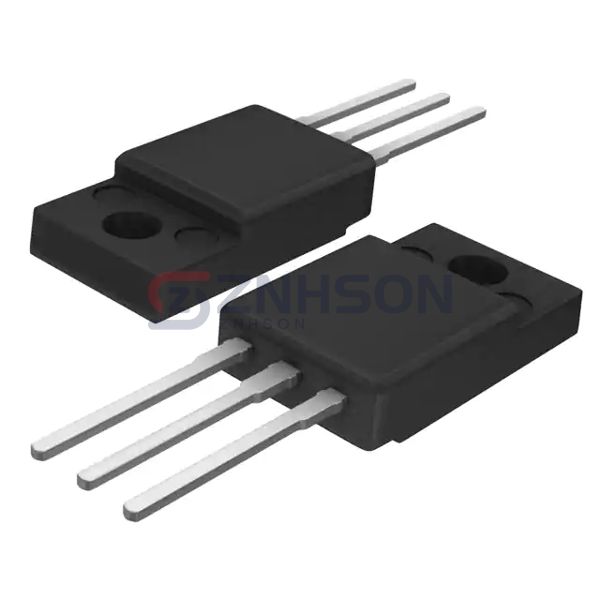

TYN20X-800TFQ
WeEn Semiconductors
WeEn Semiconductors
SCR 800V 20A TO220F
$0.49
Available to order
Reference Price (USD)
1+
$0.48675
500+
$0.4818825
1000+
$0.477015
1500+
$0.4721475
2000+
$0.46728
2500+
$0.4624125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TYN20X-800TFQ Thyristor - SCR by WeEn Semiconductors is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With WeEn Semiconductors's commitment to quality, the TYN20X-800TFQ guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 32 mA
- Voltage - On State (Vtm) (Max): 1.5 V
- Current - On State (It (AV)) (Max): 12.7 A
- Current - On State (It (RMS)) (Max): 20 A
- Current - Hold (Ih) (Max): 40 mA
- Current - Off State (Max): 1 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 210A, 231A
- SCR Type: Standard Recovery
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: TO-220F
