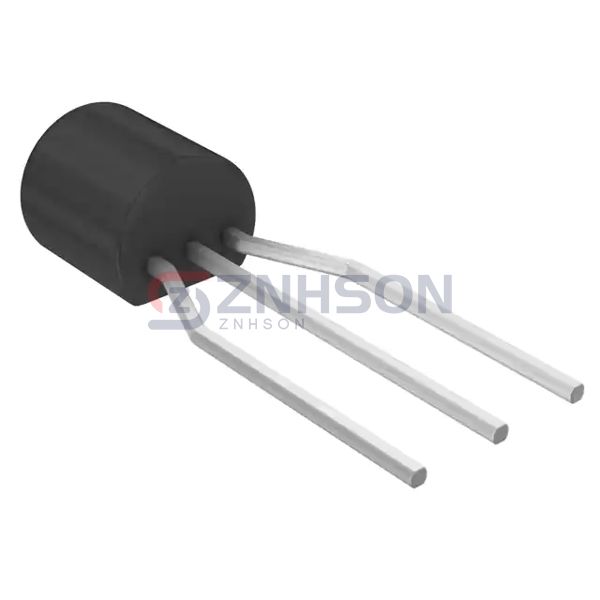

UA78L05AILPR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 5V 100MA TO92-3

Datasheet:

UA78L05AILPR Datasheet

$0.68

Available to order

Reference Price (USD)

$0.68000

500+

$0.6732

1000+

$0.6664

1500+

$0.6596

2000+

$0.6528

2500+

$0.646

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Texas Instruments's UA78L05AILPR represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the UA78L05AILPR are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 20V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 1.7V @ 40mA
Current - Output: 100mA
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 49dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package: TO-92-3
