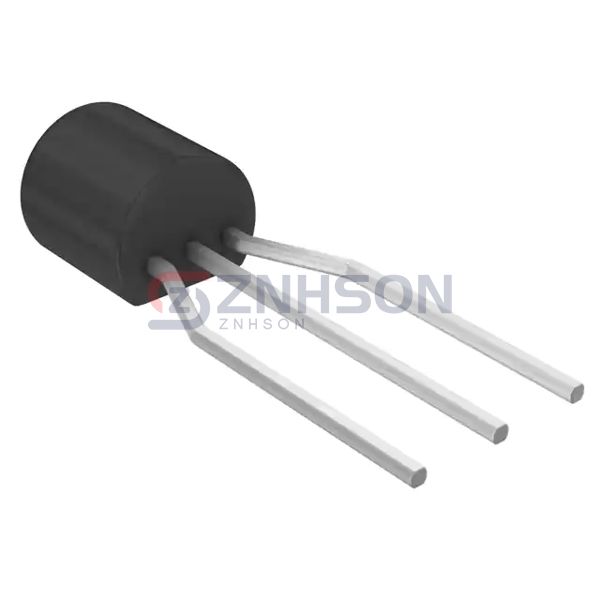

UA78L06ACLPR

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 6.2V 100MA TO92-3

Datasheet:

UA78L06ACLPR Datasheet

$0.45

Available to order

Reference Price (USD)

$0.45000

500+

$0.4455

1000+

$0.441

1500+

$0.4365

2000+

$0.432

2500+

$0.4275

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The UA78L06ACLPR from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 20V
Voltage - Output (Min/Fixed): 6.2V
Voltage - Output (Max): -
Voltage Dropout (Max): 1.7V @ 40mA
Current - Output: 100mA
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 48dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package: TO-92-3
