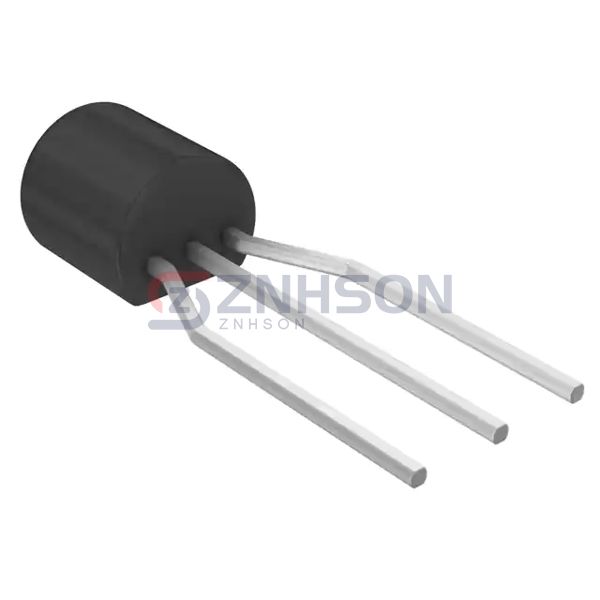

UA78L09ACLPRE3

Texas Instruments

Manufacturer

Texas Instruments

Description:

IC REG LINEAR 9V 100MA TO92-3

Datasheet:

UA78L09ACLPRE3 Datasheet

$0.45

Available to order

Reference Price (USD)

$0.45000

500+

$0.4455

1000+

$0.441

1500+

$0.4365

2000+

$0.432

2500+

$0.4275

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the UA78L09ACLPRE3 linear voltage regulator IC by Texas Instruments, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this UA78L09ACLPRE3 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 24V
Voltage - Output (Min/Fixed): 9V
Voltage - Output (Max): -
Voltage Dropout (Max): 1.7V @ 40mA
Current - Output: 100mA
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 45dB (120Hz)
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature: 0°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Supplier Device Package: TO-92-3
