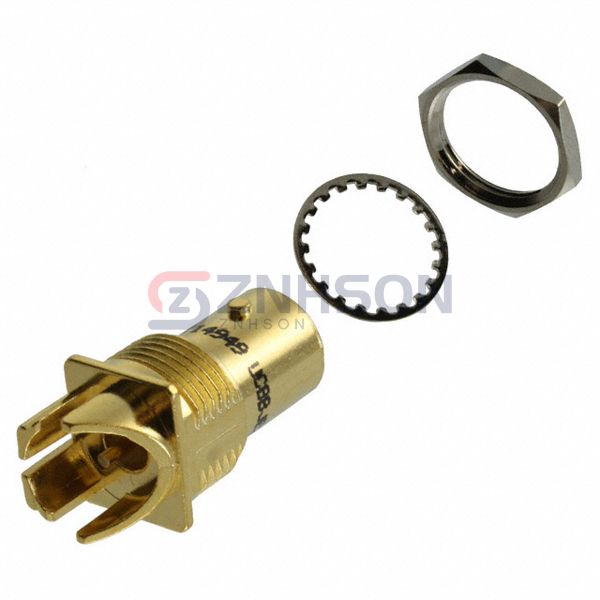

UCBBJE20-3
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN BNC JACK STR 75OHM EDGE MNT
$5.97
Available to order
Reference Price (USD)
1+
$5.69000
10+
$5.46700
25+
$5.03840
50+
$4.82400
100+
$4.60960
250+
$4.18080
500+
$4.02000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UCBBJE20-3 from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The UCBBJE20-3 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Board Edge, End Launch; Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: -
