UCBJR220
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter

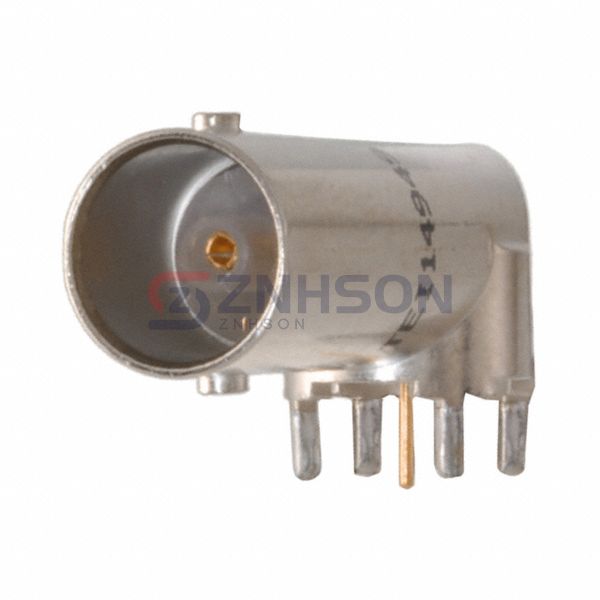

CONN BNC JACK R/A 75 OHM PCB
$0.00
Available to order
Reference Price (USD)
1+
$13.00000
10+
$12.07400
25+
$10.83600
50+
$10.52640
100+
$10.06200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the UCBJR220 from Cinch Connectivity Solutions Trompeter sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The UCBJR220 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Obsolete
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
