UCD7138DRSR
Texas Instruments
Texas Instruments

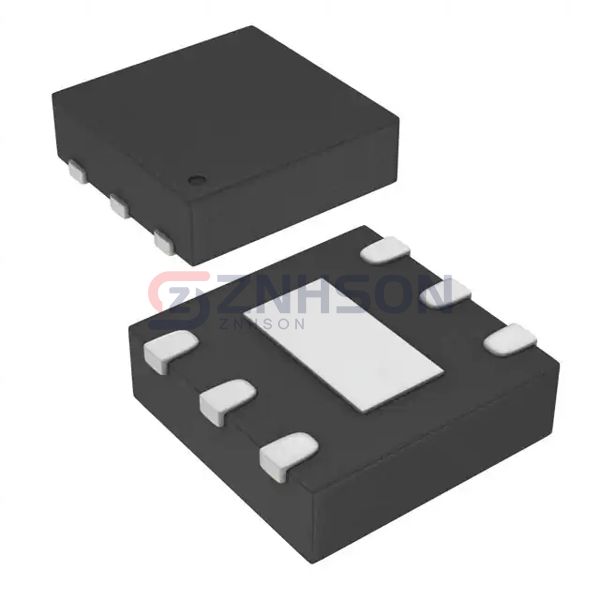

IC GATE DRVR LOW-SIDE 6SON
$1.16
Available to order
Reference Price (USD)
3,000+
$0.89100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments presents the UCD7138DRSR as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 1.08V, 1.93V
- Current - Peak Output (Source, Sink): 4A, 6A
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 4ns, 3.5ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-SON (3x3)
