UCD7201PWP
Texas Instruments
Texas Instruments

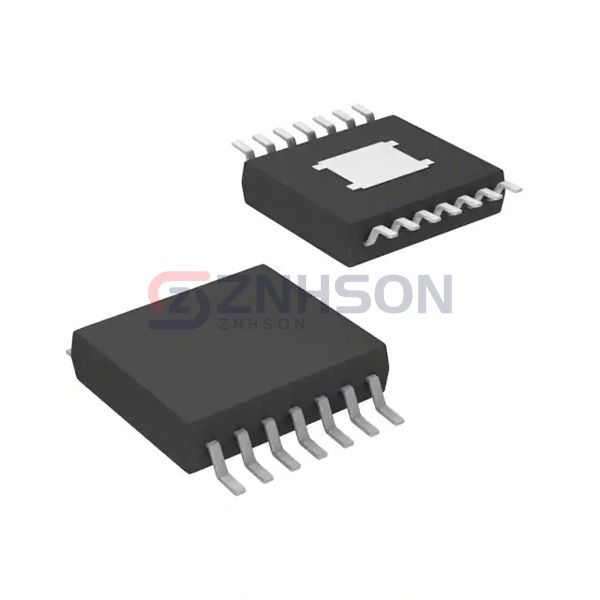

IC GATE DRVR LOW-SIDE 14HTSSOP
$3.64
Available to order
Reference Price (USD)
1+
$3.63794
500+
$3.6015606
1000+
$3.5651812
1500+
$3.5288018
2000+
$3.4924224
2500+
$3.456043
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's UCD7201PWP establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the UCD7201PWP reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.25V ~ 15V
- Logic Voltage - VIL, VIH: 1.16V, 2.08V
- Current - Peak Output (Source, Sink): 4A, 4A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 10ns, 10ns
- Operating Temperature: -40°C ~ 105°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package: 14-HTSSOP
