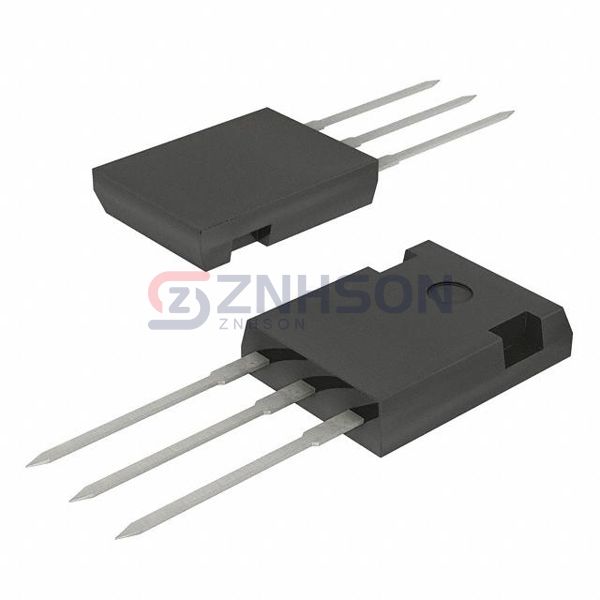

UG6005PT
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ARRAY GP 300V 60A TO247AD
$2.74
Available to order
Reference Price (USD)
1+
$2.73754
500+
$2.7101646
1000+
$2.6827892
1500+
$2.6554138
2000+
$2.6280384
2500+
$2.600663
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UG6005PT rectifier array from Taiwan Semiconductor Corporation redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Taiwan Semiconductor Corporation's precision manufacturing ensures each UG6005PT meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io) (per Diode): 60A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 300 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD (TO-3P)
Related Products
onsemi
SSV1BAW56LT1
Vishay General Semiconductor - Diodes Division
FEPB16FT-E3/81
SMC Diode Solutions
MBRB30120CT
Rohm Semiconductor
RB085BM-90FHTL
Rohm Semiconductor
RBR20BM60AFHTL
Diodes Incorporated
BAV70LP-7
Vishay General Semiconductor - Diodes Division
VS-MBRB4045CTRHM3
Vishay General Semiconductor - Diodes Division
VB60170G-E3/8W
onsemi

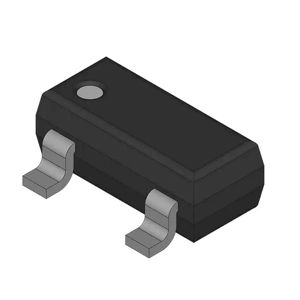

SBAT54ALT1

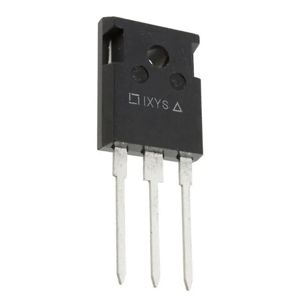

IXYS
