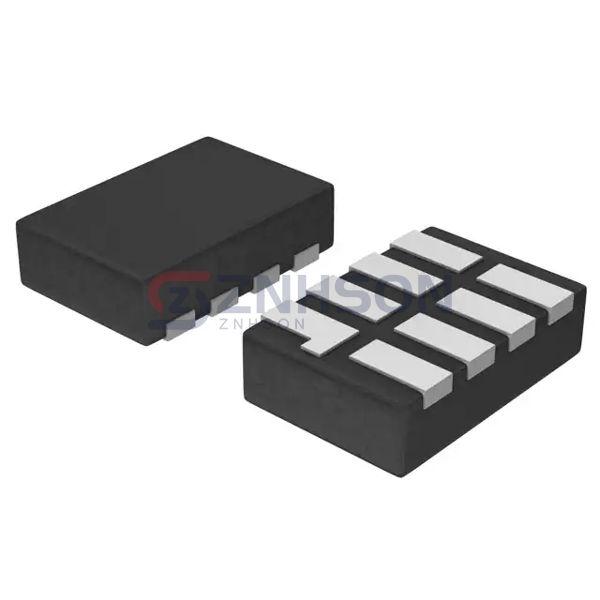

UM3202Q
Union Semiconductor (HK) Limited
Union Semiconductor (HK) Limited
2 BIT BIDIRECTIONAL TRANSLATOR
$0.46
Available to order
Reference Price (USD)
1+
$0.45500
500+
$0.45045
1000+
$0.4459
1500+
$0.44135
2000+
$0.4368
2500+
$0.43225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Union Semiconductor (HK) Limited's UM3202Q stands out in the Logic - Translators, Level Shifters segment with its unique combination of speed and power efficiency. This bi-directional voltage translator supports data rates up to 100Mbps while consuming minimal power, thanks to its advanced CMOS technology. The auto-direction sensing eliminates the need for additional control signals, reducing design complexity. Practical applications range from gaming consoles (interface between high-speed memory and low-voltage processors) to industrial HMIs (connecting touch panels with various voltage requirements) and satellite communications equipment.
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 2
- Voltage - VCCA: 1.65 V ~ 3.6 V
- Voltage - VCCB: 2.3 V ~ 5.5 V
- Input Signal: -
- Output Signal: -
- Output Type: Open Drain, Push-Pull
- Data Rate: 24Mbps
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN
- Supplier Device Package: 8-DFN (1.7x1.35)
Related Products
onsemi
MC10EPT20MNR4G
Texas Instruments
SN74LVC16T245DL
onsemi
NLSV8T244MUTAG
onsemi
MC100LVEL92DWG
onsemi
MC100H603FN
Texas Instruments
SN10KHT5578DWR
Texas Instruments

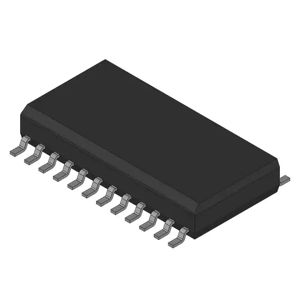

SN10KHT5540DW
Analog Devices Inc./Maxim Integrated

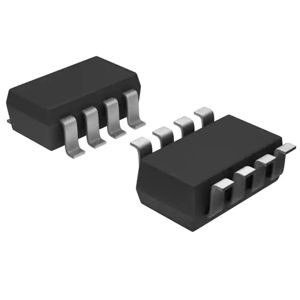

MAX3375EEKA+T
Texas Instruments

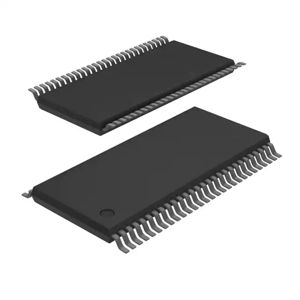

SN74GTLPH16927GR
