UM9636
Union Semiconductor (HK) Limited
Union Semiconductor (HK) Limited
Wide Band SPDT Switch
$1.00
Available to order
Reference Price (USD)
1+
$1.00000
500+
$0.99
1000+
$0.98
1500+
$0.97
2000+
$0.96
2500+
$0.95
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with Union Semiconductor (HK) Limited's UM9636, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The UM9636 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 125Ohm
- Channel-to-Channel Matching (ΔRon): 10Ohm
- Voltage - Supply, Single (V+): 2.7V ~ 12V
- Voltage - Supply, Dual (V±): 2.7V ~ 12V
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 720MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): -
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

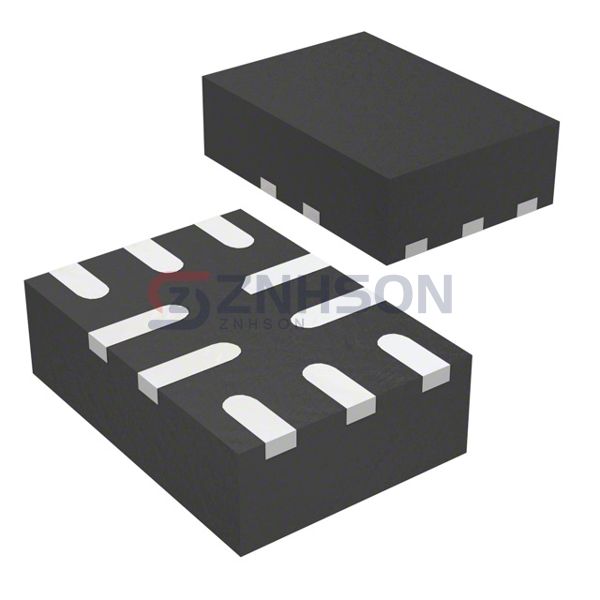

- Package / Case: 10-UFQFN
- Supplier Device Package: 10-QFN (1.8x1.4)
