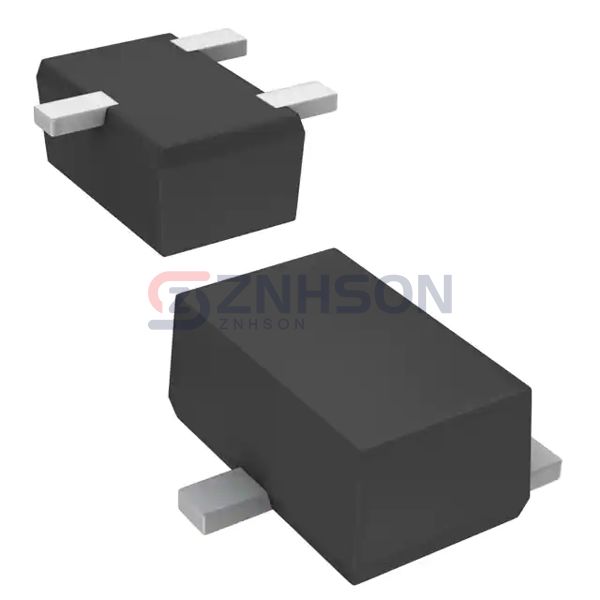

UNR92ANG0L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 125MW SSMINI3
$0.10
Available to order
Reference Price (USD)
3,000+
$0.07203
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Panasonic Electronic Components's space-saving UNR92ANG0L. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Panasonic Electronic Components combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 80 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150 MHz
- Power - Max: 125 mW
- Mounting Type: Surface Mount
- Package / Case: SC-89, SOT-490
- Supplier Device Package: SSMini3-F3
