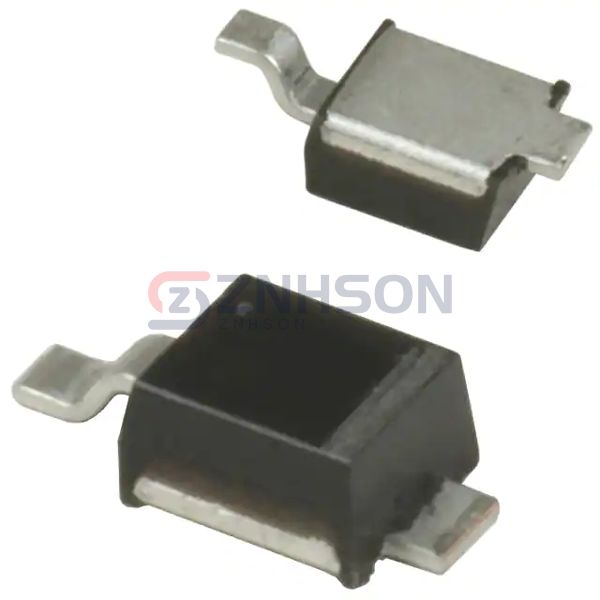

UPS120E/TR7
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 20V 1A POWERMITE
$0.54
Available to order
Reference Price (USD)
3,000+
$0.42000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The UPS120E/TR7 by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the UPS120E/TR7 ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 450 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 400 µA @ 20 V
- Capacitance @ Vr, F: 80pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-216AA
- Supplier Device Package: Powermite
- Operating Temperature - Junction: -55°C ~ 125°C
