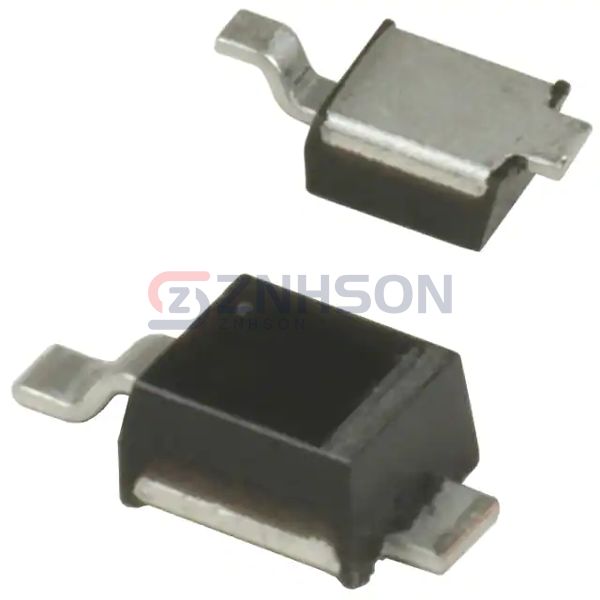

UPS560/TR13
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 60V 5A POWERMITE
$1.42
Available to order
Reference Price (USD)
5,000+
$1.09200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the UPS560/TR13 single rectifier diode by Microchip Technology, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The UPS560/TR13 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Microchip Technology's UPS560/TR13 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 690 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 60 V
- Capacitance @ Vr, F: 150pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-216AA
- Supplier Device Package: Powermite
- Operating Temperature - Junction: -55°C ~ 125°C
