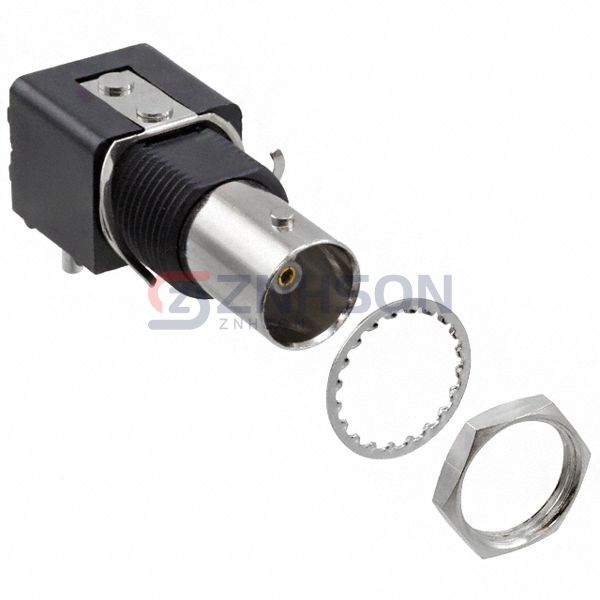

VBF211-75
Cinch Connectivity Solutions
Cinch Connectivity Solutions
CONN BNC JACK R/A 75 OHM PCB
$12.58
Available to order
Reference Price (USD)
100+
$11.54340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VBF211-75 from Cinch Connectivity Solutions represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The VBF211-75 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: Filter
- Housing Color: -
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
