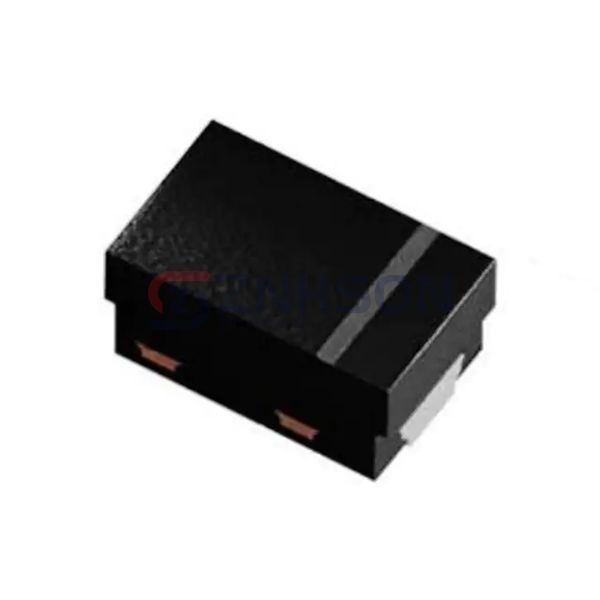

VCUT0714BHD1-G3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
TVS DIODE 7VWM 14VWM 2DFN
$0.36
Available to order
Reference Price (USD)
1+
$0.36000
500+
$0.3564
1000+
$0.3528
1500+
$0.3492
2000+
$0.3456
2500+
$0.342
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VCUT0714BHD1-G3-08 by Vishay General Semiconductor - Diodes Division is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the VCUT0714BHD1-G3-08 can secure CAN bus lines in vehicles against voltage spikes. Rely on Vishay General Semiconductor - Diodes Division for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 7V, 14V
- Voltage - Breakdown (Min): 7.3V, 14.5V
- Voltage - Clamping (Max) @ Ipp: 15V, 30V
- Current - Peak Pulse (10/1000µs): 3.6A (8/20µs), 2A (8/20µs)
- Power - Peak Pulse: 50W, 61W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 8pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: DFN1006-2A
Related Products
Vishay General Semiconductor - Diodes Division
SMC3K33CAHM3_A/H
Microchip Technology
MSMCJLCE8.5A
Vishay General Semiconductor - Diodes Division
SMCJ78CA-M3/9AT
Comchip Technology
TV02W111B-G
Vishay General Semiconductor - Diodes Division

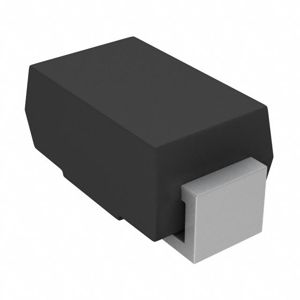

SMA5J7.5A-M3/61
Vishay General Semiconductor - Diodes Division
SMBJ85CAHE3_A/H
Bourns Inc.

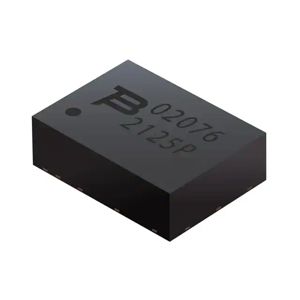

PTVS2-026C-H
Eaton - Electronics Division

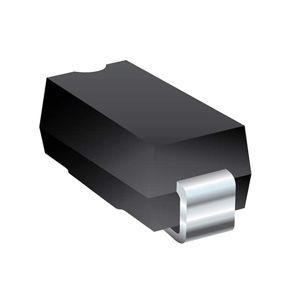

SMCJE7-5CA
Panjit International Inc.

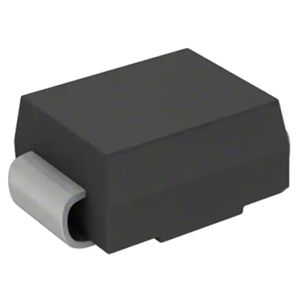

P6SMBJ33CA-AU_R1_000A1
