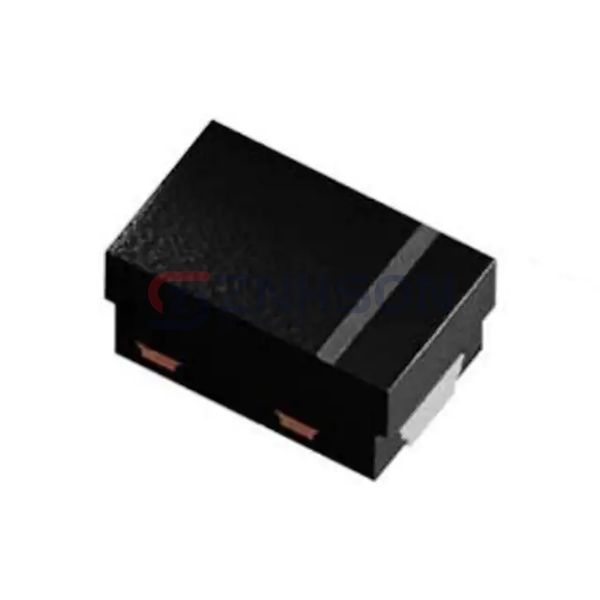

VCUT0714BHD1HG3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
TVS DIODE 7VWM 14VWM 2DFN
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the VCUT0714BHD1HG3-08 TVS diode from Vishay General Semiconductor - Diodes Division, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the VCUT0714BHD1HG3-08 can defend automotive infotainment systems from voltage spikes. Vishay General Semiconductor - Diodes Division is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 7V, 14V
- Voltage - Breakdown (Min): 7.3V, 14.5V
- Voltage - Clamping (Max) @ Ipp: 15V, 30V
- Current - Peak Pulse (10/1000µs): 3.6A (8/20µs), 2A (8/20µs)
- Power - Peak Pulse: 50W, 61W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 8pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: DFN1006-2A
