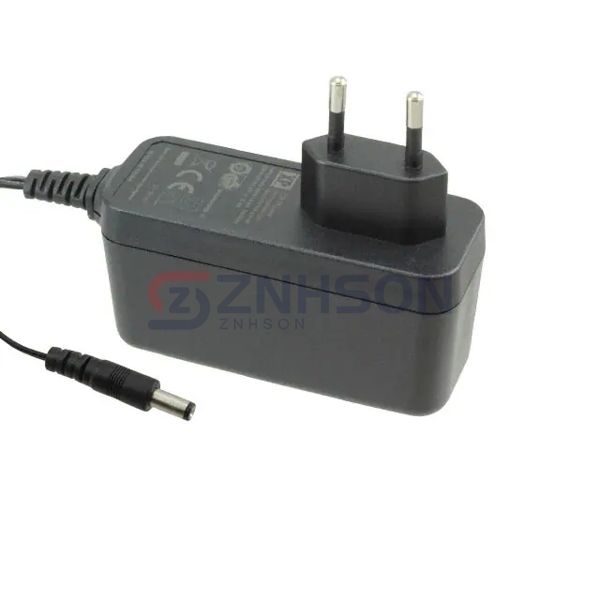

VEL36US240-EU-JA
XP Power

XP Power
AC/DC WALL MOUNT ADAPTER 24V 36W
$18.91
Available to order
Reference Price (USD)
1+
$18.00000
5+
$17.46000
10+
$16.92000
25+
$16.20000
100+
$15.12000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VEL36US240-EU-JA from XP Power's AC DC Desktop & Wall Adapters lineup delivers precision power for sensitive electronics. These External/Internal (Off-Board) Power Supplies incorporate synchronous rectification technology for cooler operation and higher density. Medical (BF rated), IoT, and automotive applications benefit from the adaptive charging profiles and EMI-compliant designs. Key advantages: 1) 3-year MTBF 2) Automatic recovery 3) DIN rail mounting options 4) LED status indicators. Compatible with 90-264VAC input for global deployment. Download technical specs for VEL36US240-EU-JA on our product page.
Specifications
- Product Status: Active
- Region Utilized: Europe
- Form: Wall Mount (Class II)
- Input Type: Fixed Blade
- Voltage - Input: 90 ~ 264 VAC
- Voltage - Output: 24V
- Current - Output (Max): 1.5A
- Power (Watts): 36 W
- No Load Power Consumption: 75mW (Max)
- Polarization: Positive Center
- Applications: ITE (Commercial)
- Efficiency: Level VI, CoC Tier 2
- Operating Temperature: 0°C ~ 60°C
- Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
- Cord Length: 59" (1.50m)
- Input Connector: CEE 7/16
- Features: -
- Size / Dimension: 3.70" L x 1.38" W x 1.83" H (94.0mm x 35.0mm x 46.6mm)
- Approval Agency: CB, CCC
- Standard Number: 62368-1
