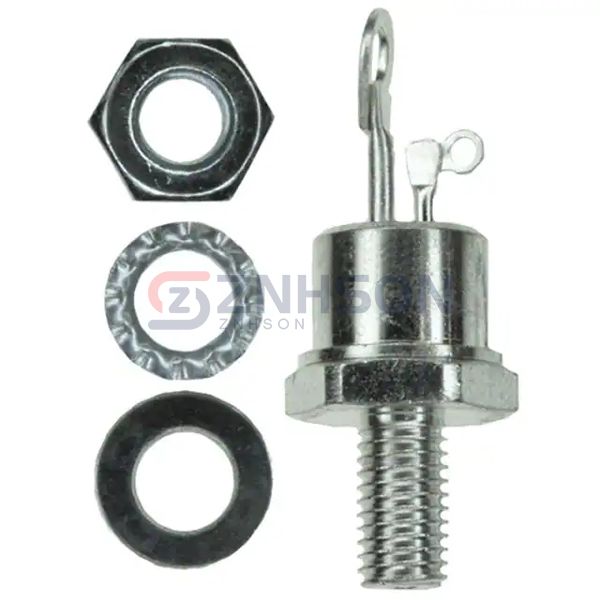

VS-2N691
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 700V 25A TO208AA
$12.77
Available to order
Reference Price (USD)
100+
$12.04900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the VS-2N691 SCR from Vishay General Semiconductor - Diodes Division, a top-tier choice in Thyristors. This Discrete Semiconductor Product excels in high-power switching with minimal energy loss. Key features include high surge capability and reliable turn-off characteristics. Commonly used in electric vehicle charging stations, power supplies, and HVAC systems, the VS-2N691 is versatile and dependable. Vishay General Semiconductor - Diodes Division's cutting-edge technology ensures this SCR meets global industry standards.
Specifications
- Product Status: Active
- Voltage - Off State: 700 V
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 20 mA
- Current - Off State (Max): 2.25 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 145A, 150A
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C
- Mounting Type: Chassis, Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-208AA (TO-48)
