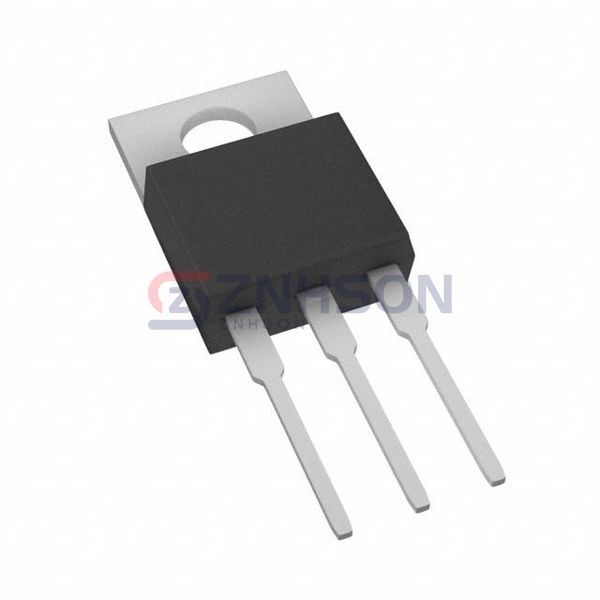

VS-40CTQ045-M3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ARRAY SCHOTTKY 45V TO220AB
$2.06
Available to order
Reference Price (USD)
1,000+
$1.06546
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the VS-40CTQ045-M3 diode rectifier array by Vishay General Semiconductor - Diodes Division, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Vishay General Semiconductor - Diodes Division delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 680 mV @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 3 mA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220-3
