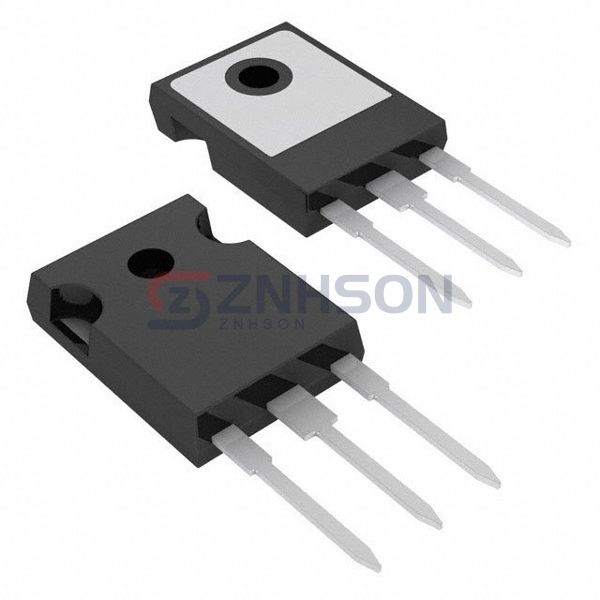

VS-40TPS12A-M3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 55A TO247AC
$7.63
Available to order
Reference Price (USD)
1+
$8.94000
10+
$8.07800
25+
$7.70200
100+
$6.68750
250+
$6.38692
500+
$5.82336
1,000+
$5.07195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the VS-40TPS12A-M3 SCR by Vishay General Semiconductor - Diodes Division, a high-reliability component in the Thyristors family of Discrete Semiconductor Products. Its notable features include precise gate control and excellent thermal cycling performance. Widely adopted in traction systems, welding inverters, and power distribution networks, this thyristor demonstrates exceptional versatility. Vishay General Semiconductor - Diodes Division's VS-40TPS12A-M3 is the smart choice for engineers seeking robust power control solutions.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 2.5 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Voltage - On State (Vtm) (Max): 1.85 V
- Current - On State (It (AV)) (Max): 35 A
- Current - On State (It (RMS)) (Max): 55 A
- Current - Hold (Ih) (Max): 200 mA
- Current - Off State (Max): 500 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 500A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
