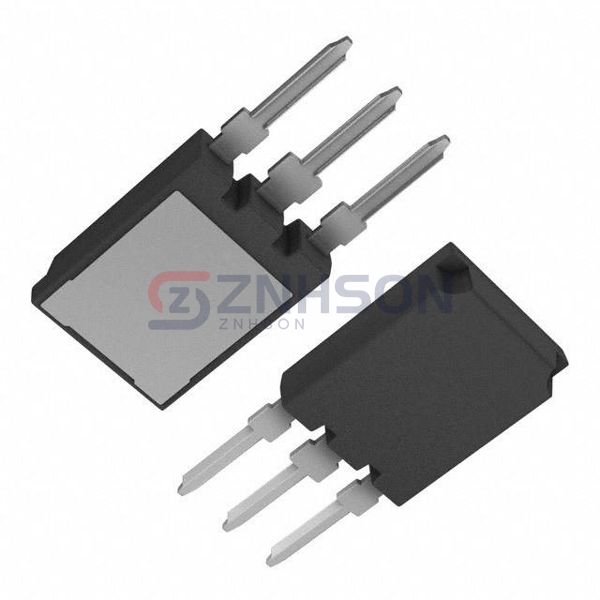

VS-70TPS12PBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 75A SUPER-247
$8.33
Available to order
Reference Price (USD)
1+
$8.61000
10+
$7.85400
25+
$7.52440
100+
$6.63300
250+
$6.36900
500+
$5.87400
1,000+
$5.21400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the VS-70TPS12PBF SCR from Vishay General Semiconductor - Diodes Division, a top-tier choice in Thyristors. This Discrete Semiconductor Product excels in high-power switching with minimal energy loss. Key features include high surge capability and reliable turn-off characteristics. Commonly used in electric vehicle charging stations, power supplies, and HVAC systems, the VS-70TPS12PBF is versatile and dependable. Vishay General Semiconductor - Diodes Division's cutting-edge technology ensures this SCR meets global industry standards.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 100 mA
- Voltage - On State (Vtm) (Max): 1.4 V
- Current - On State (It (AV)) (Max): 70 A
- Current - On State (It (RMS)) (Max): 75 A
- Current - Hold (Ih) (Max): 200 mA
- Current - Off State (Max): 1 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 1400A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
