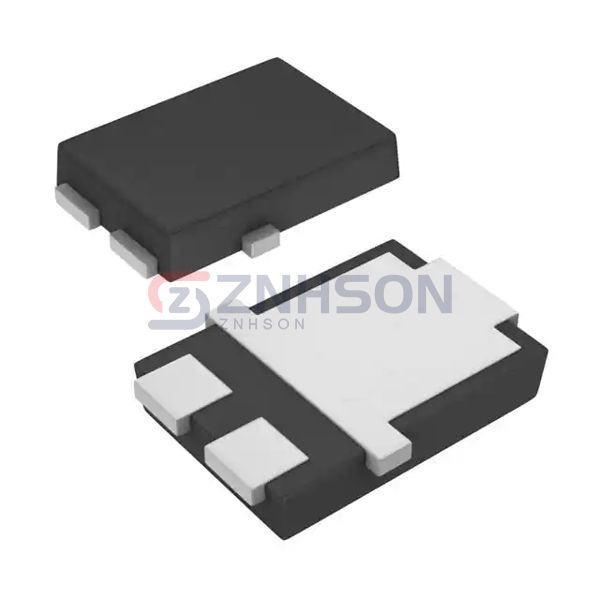

VS-8CSH01-M3/87A
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE STANDARD 100V 4A TO277A
$0.32
Available to order
Reference Price (USD)
6,500+
$0.27062
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the VS-8CSH01-M3/87A diode rectifier array by Vishay General Semiconductor - Diodes Division, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Vishay General Semiconductor - Diodes Division delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 4A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 100 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: TO-277, 3-PowerDFN
- Supplier Device Package: TO-277A (SMPC)
