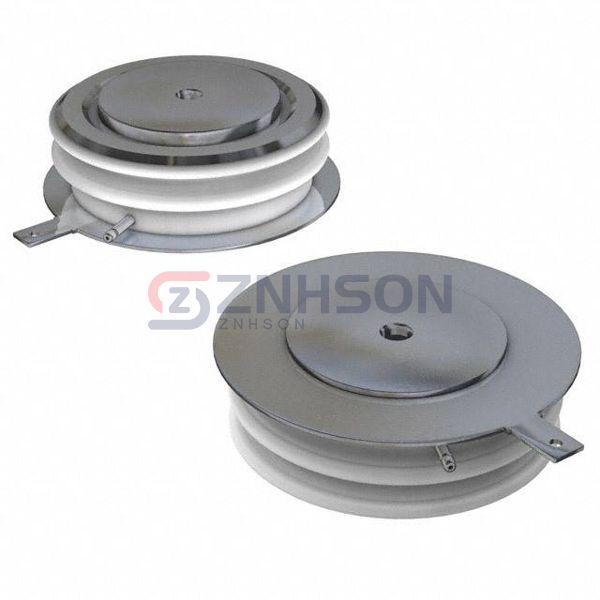

VS-ST1000C22K1
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 2.2KV 2913A A24
$290.16
Available to order
Reference Price (USD)
2+
$249.71500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the VS-ST1000C22K1 SCR from Vishay General Semiconductor - Diodes Division, a top-tier choice in Thyristors. This Discrete Semiconductor Product excels in high-power switching with minimal energy loss. Key features include high surge capability and reliable turn-off characteristics. Commonly used in electric vehicle charging stations, power supplies, and HVAC systems, the VS-ST1000C22K1 is versatile and dependable. Vishay General Semiconductor - Diodes Division's cutting-edge technology ensures this SCR meets global industry standards.
Specifications
- Product Status: Active
- Voltage - Off State: 2.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 3 V
- Current - Gate Trigger (Igt) (Max): 200 mA
- Voltage - On State (Vtm) (Max): 1.8 V
- Current - On State (It (AV)) (Max): 1473 A
- Current - On State (It (RMS)) (Max): 2913 A
- Current - Hold (Ih) (Max): 600 mA
- Current - Off State (Max): 100 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 17000A, 18100A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: TO-200AC, K-PUK, A-24
- Supplier Device Package: A-24 (K-Puk)
