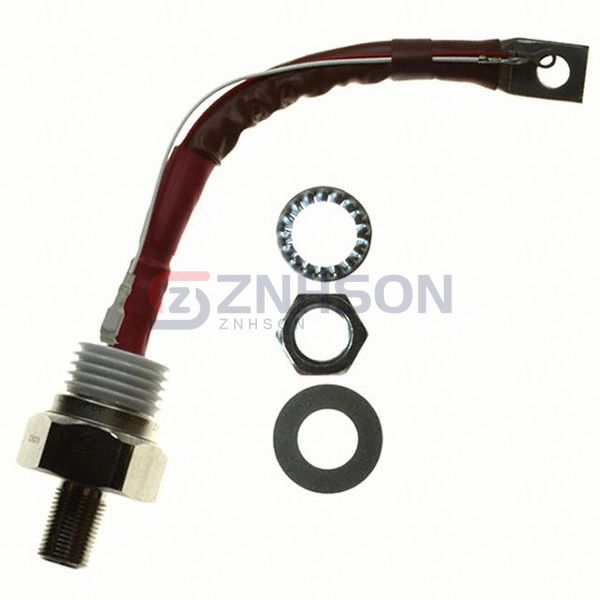

VS-ST300S20P0PBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 2KV 470A TO209AE
$200.01
Available to order
Reference Price (USD)
1+
$164.31000
10+
$157.36600
25+
$153.89440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-ST300S20P0PBF from Vishay General Semiconductor - Diodes Division redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. Vishay General Semiconductor - Diodes Division's VS-ST300S20P0PBF combines advanced engineering with practical functionality.
Specifications
- Product Status: Active
- Voltage - Off State: 2 kV
- Voltage - Gate Trigger (Vgt) (Max): 3 V
- Current - Gate Trigger (Igt) (Max): 200 mA
- Voltage - On State (Vtm) (Max): 1.66 V
- Current - On State (It (AV)) (Max): 300 A
- Current - On State (It (RMS)) (Max): 470 A
- Current - Hold (Ih) (Max): 600 mA
- Current - Off State (Max): 30 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 8000A, 8380A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis, Stud Mount
- Package / Case: TO-209AE, TO-118-4, Stud
- Supplier Device Package: TO-209AE (TO-118)
