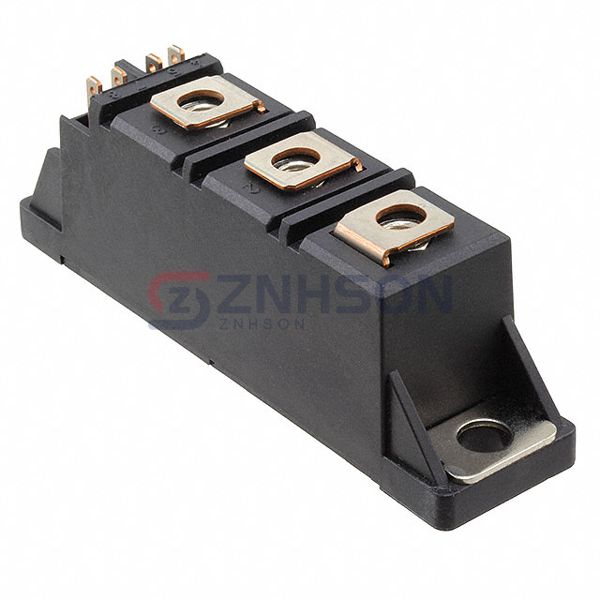

VS-VSKH500-14PBF
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
MODULE DIODE 500A SMAGN-A-PAK
$395.30
Available to order
Reference Price (USD)
1+
$340.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-VSKH500-14PBF Thyristors - SCRs - Modules by Vishay General Semiconductor - Diodes Division offer exceptional performance and reliability in discrete semiconductor applications. Designed for high-power switching and control, these modules are commonly used in electric vehicle powertrains, grid-tie inverters, and heavy machinery. With excellent thermal stability and high surge current capacity, they ensure consistent operation under demanding conditions. Vishay General Semiconductor - Diodes Division's dedication to quality and innovation makes these SCR modules a trusted choice for engineers and designers worldwide. Upgrade your systems with these high-performance components today.
Specifications
- Product Status: Active
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 1.4 kV
- Current - On State (It (AV)) (Max): 500 A
- Current - On State (It (RMS)) (Max): 785 A
- Voltage - Gate Trigger (Vgt) (Max): 3 V
- Current - Gate Trigger (Igt) (Max): 200 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 17800A, 18700A
- Current - Hold (Ih) (Max): 500 mA
- Operating Temperature: -40°C ~ 130°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: 3-SuperMAGN-A-PAK™
