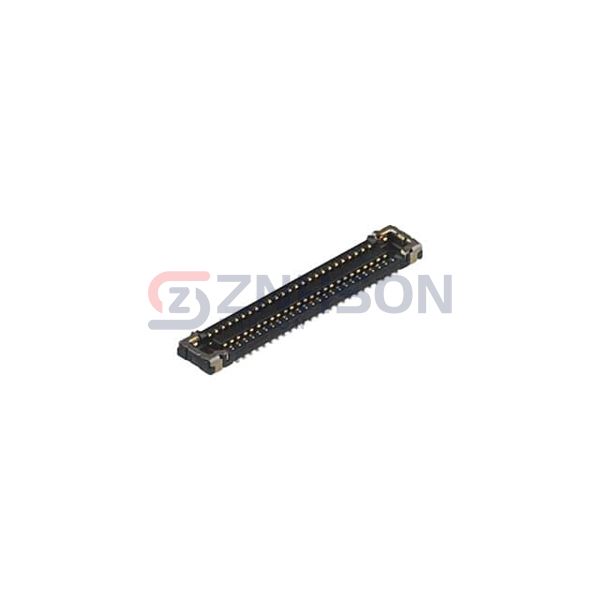

WP27D-S050VA3-R15000
JAE Electronics
JAE Electronics
CONN RCPT 50POS SMD GOLD
$2.21
Available to order
Reference Price (USD)
15,000+
$0.93600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the WP27D-S050VA3-R15000 rectangular connector by JAE Electronics. This edge-type mezzanine connector is designed for high-density board-to-board applications, offering superior signal integrity and space efficiency. Its robust construction ensures reliable performance in harsh conditions, from industrial machinery to outdoor telecommunications equipment. Typical applications include modular electronics, such as blade servers and portable medical devices. By integrating WP27D-S050VA3-R15000 into your designs, you benefit from a connector that combines innovation, durability, and ease of use.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Center Strip Contacts
- Number of Positions: 50
- Pitch: 0.014" (0.35mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Solder Retention
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 0.7mm
- Height Above Board: 0.028" (0.71mm)
Related Products
Panasonic Electric Works
AXF5A5012A
Samtec Inc.
BTH-090-01-F-D-RA-WT-K
Panasonic Electric Works
AXK720147G
Panasonic Electric Works
AXF6K0412

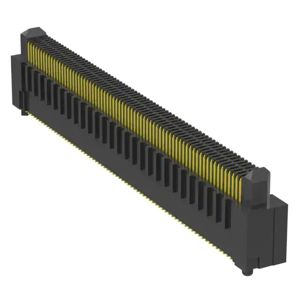

Samtec Inc.
ERM8-070-09.0-S-DV-TR

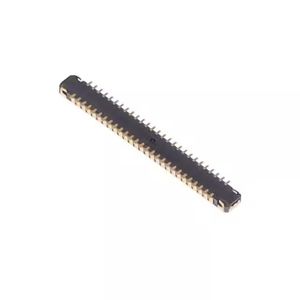

Hirose Electric Co Ltd
BM23PF0.8-54DP-0.35V(895)

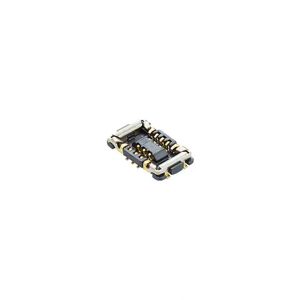

Molex
505066-4010
Molex
505270-3010

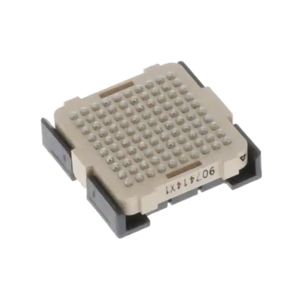

Amphenol ICC (FCI)
