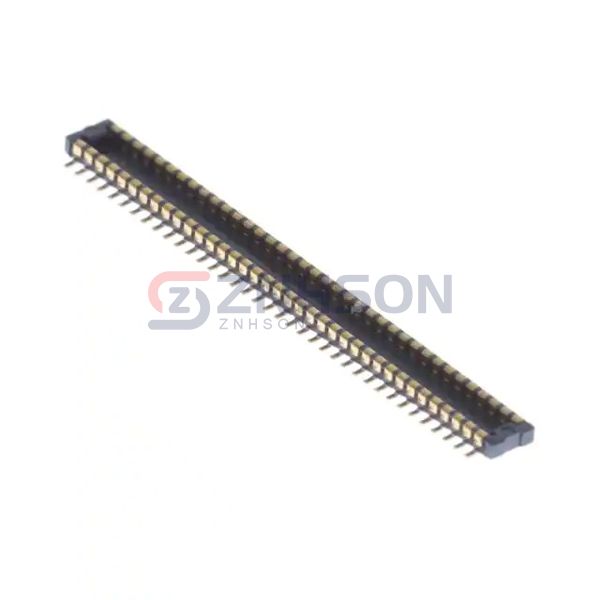

WP7B-P070VA1-R8000
JAE Electronics
JAE Electronics
CONN PLUG 70POS SMD GOLD
$1.32
Available to order
Reference Price (USD)
1+
$1.32000
500+
$1.3068
1000+
$1.2936
1500+
$1.2804
2000+
$1.2672
2500+
$1.254
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The WP7B-P070VA1-R8000 by JAE Electronics is a cutting-edge rectangular connector designed for array and edge-type board-to-board applications. Its mezzanine configuration supports high-speed signal transmission and power delivery in compact spaces. These connectors are widely used in consumer electronics, automotive systems, and industrial equipment. For example, they are essential in smartphones, electric vehicle control units, and CNC machines. With WP7B-P070VA1-R8000, you get a connector that combines advanced technology with unmatched durability for your most demanding projects.
Specifications
- Product Status: Active
- Connector Type: Plug, Outer Shroud Contacts
- Number of Positions: 70
- Pitch: 0.016" (0.40mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Solder Retention
- Contact Finish: Gold
- Contact Finish Thickness: 4.00µin (0.100µm)
- Mated Stacking Heights: 0.7mm
- Height Above Board: 0.020" (0.50mm)
Related Products
TE Connectivity AMP Connectors
5-179010-4
Würth Elektronik

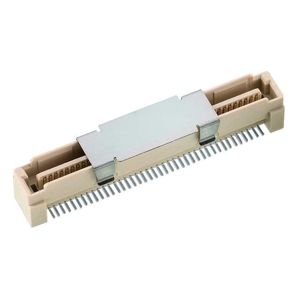

658857603080
TE Connectivity AMP Connectors

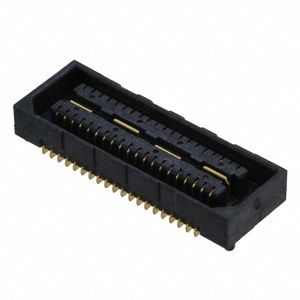

6-1658043-1
Panasonic Electric Works
AXE612124A
Hirose Electric Co Ltd

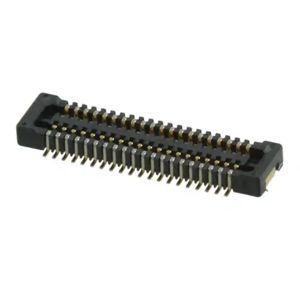

DF37B-40DP-0.4V(75)
TE Connectivity AMP Connectors

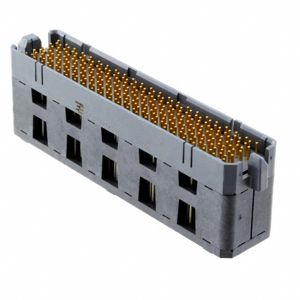

7-2149790-5
Samtec Inc.

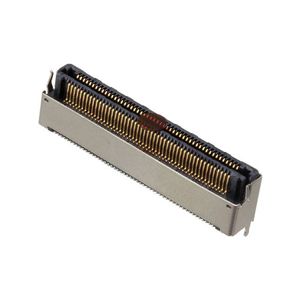

LSHM-150-06.0-F-DV-A-S-K-TR
Molex

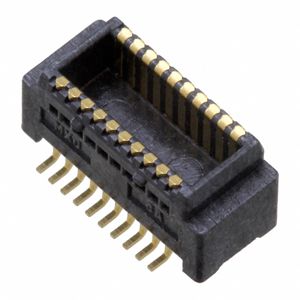

0539160208
Samtec Inc.

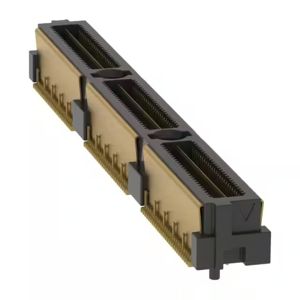

QMSS-078-06.75-H-D-A
