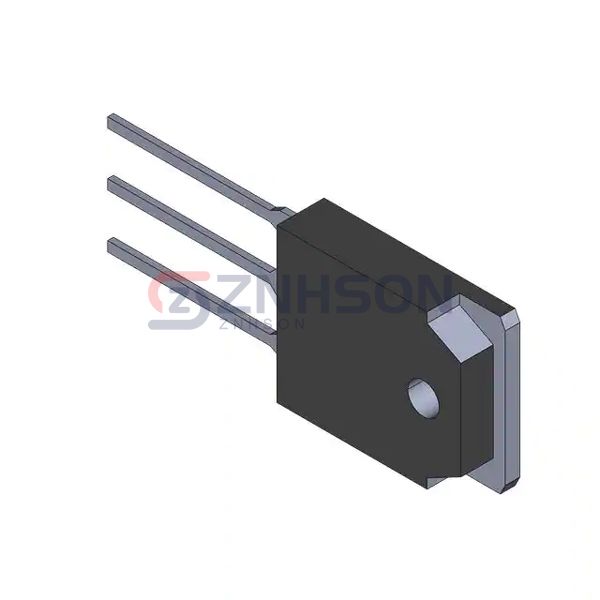

WPB4002
onsemi
onsemi
MOSFET N-CH 600V 23A TO3PB
$7.72
Available to order
Reference Price (USD)
1+
$7.72000
500+
$7.6428
1000+
$7.5656
1500+
$7.4884
2000+
$7.4112
2500+
$7.334
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The WPB4002 by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the WPB4002 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 360mOhm @ 11.5A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 84 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2200 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 220W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-3PB
- Package / Case: TO-3P-3, SC-65-3
