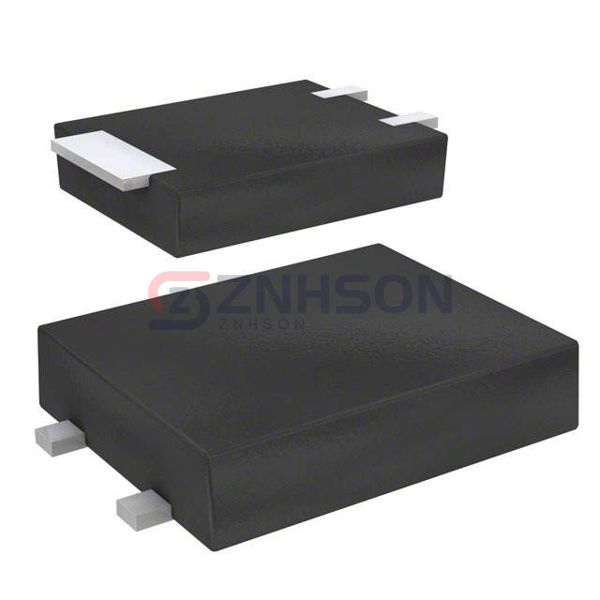

X0202NUF
STMicroelectronics
STMicroelectronics
SCR 800V 1.25A SMBFLAT-3L
$1.00
Available to order
Reference Price (USD)
5,000+
$0.34447
10,000+
$0.33152
25,000+
$0.32116
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The X0202NUF Thyristor - SCR by STMicroelectronics is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With STMicroelectronics's commitment to quality, the X0202NUF guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.45 V
- Current - On State (It (AV)) (Max): 800 mA
- Current - On State (It (RMS)) (Max): 1.25 A
- Current - Hold (Ih) (Max): 5 mA
- Current - Off State (Max): 5 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 22.5A, 25A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 3-SMB, Flat Lead
- Supplier Device Package: SMBflat-3L
