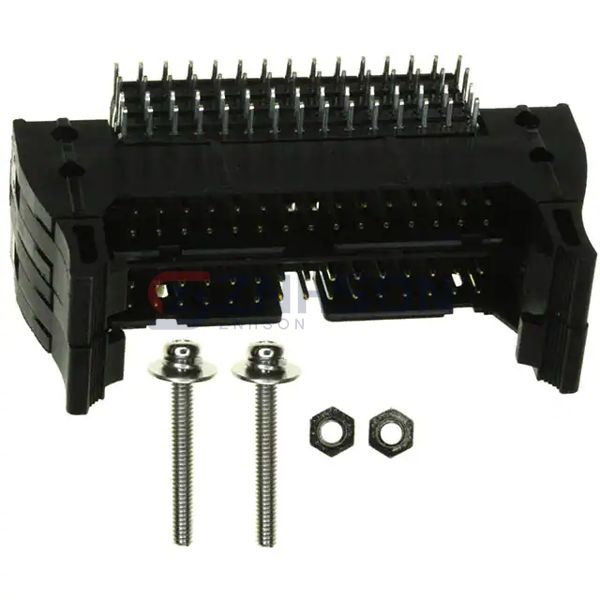

XG4A-3039-A
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER R/A 30POS 2.54MM
$12.68
Available to order
Reference Price (USD)
1+
$10.05000
35+
$8.91057
105+
$7.76810
525+
$6.62575
1,015+
$6.60036
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the XG4A-3039-A rectangular connector header by Omron Electronics Inc-EMC Div. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the XG4A-3039-A ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Omron Electronics Inc-EMC Div for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Stackable (2)
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30, 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.669" (17.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
