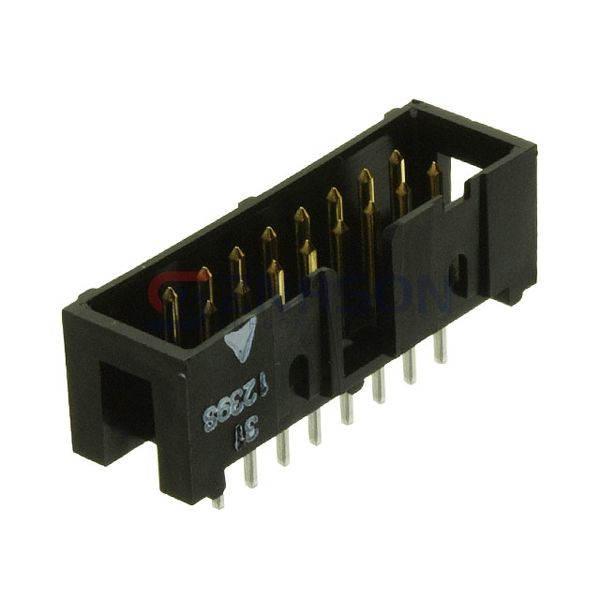

XG4C-1631
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 16POS 2.54MM
$1.68
Available to order
Reference Price (USD)
1+
$1.22000
10+
$1.10600
110+
$0.94836
550+
$0.79031
1,100+
$0.70563
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the XG4C-1631 rectangular connector header from Omron Electronics Inc-EMC Div. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the XG4C-1631 is perfect for automotive, industrial, and consumer electronics. Omron Electronics Inc-EMC Div ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.480" (12.19mm)
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
Related Products
Mill-Max Manufacturing Corp.
350-10-149-00-001000
Mill-Max Manufacturing Corp.
852-10-082-10-001000
Preci-Dip
800-10-060-20-004101
Amphenol ICC (FCI)
95278-401B12LF
Amphenol ICC (FCI)
69192-106
Amphenol ICC (FCI)
95278-802-22LF

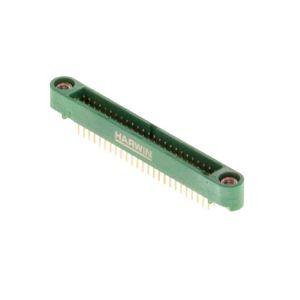

Harwin Inc.
G125-MV15005M1P

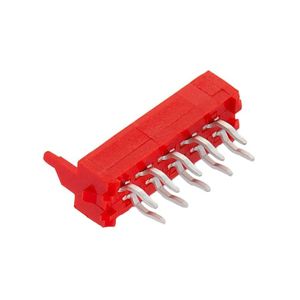

Würth Elektronik
