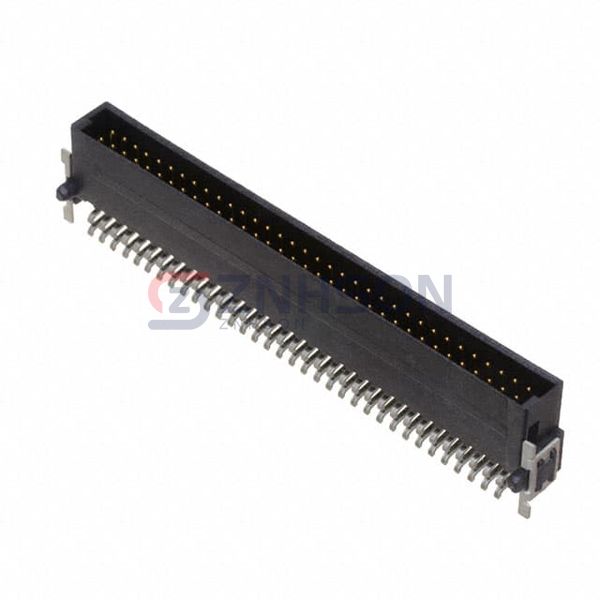

XH5A-6815-N
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
PLUG, RIGHT-ANGLE, SMT PINS
$8.28
Available to order
Reference Price (USD)
1+
$8.28000
500+
$8.1972
1000+
$8.1144
1500+
$8.0316
2000+
$7.9488
2500+
$7.866
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the XH5A-6815-N rectangular connector header from Omron Electronics Inc-EMC Div, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the XH5A-6815-N adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Omron Electronics Inc-EMC Div guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 68
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.167" (4.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 100VAC
