XP3A-4654-0742D-D/S
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

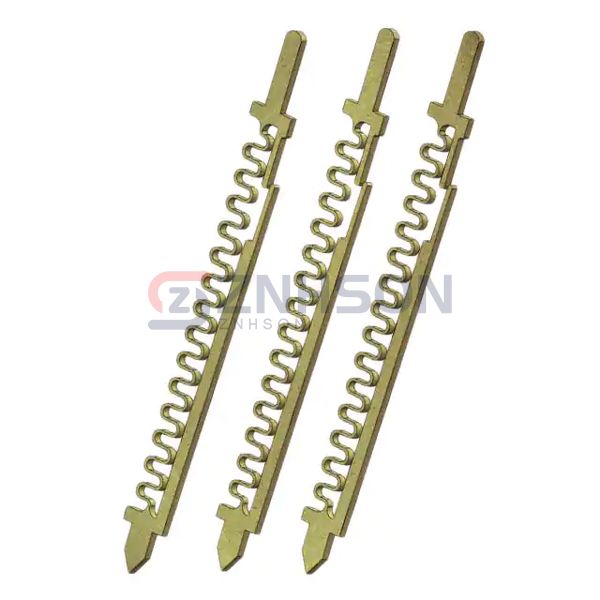

CONTACT SPRING LOADED T/H GOLD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets versatility in Omron Electronics Inc-EMC Div's XP3A-4654-0742D-D/S modular Spring Loaded Contact system. This innovative Pressure Connectors solution allows engineers to mix-and-match plunger heads, spring forces, and housing materials for customized interconnect profiles. The category shines in prototyping applications, research lab equipment, and low-volume manufacturing with quick-ship configurations. Notable implementations include university robotics projects, particle physics detector interfaces, and Mars rover testbed connections. XP3A-4654-0742D-D/S supports unique requirements like ultra-low-force (10gf) contacts for delicate membrane switches or high-insertion-force (500gf) versions for power distribution modules - all with gold-over-nickel plating for superior corrosion resistance.
Specifications
- Product Status: Obsolete
- Contact Type: Probe Pin
- Mounting Type: Through Hole
- Maximum Working Height: 0.167" (4.25mm)
- Recommended Working Height: 0.152" (3.85mm)
- Minimum Working Height: -
- Pad Layout Dimension: -
- Operating Force - Initial: 15gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.003" ~ 0.018" (0.07mm ~ 0.046mm)
- Features: -
- Mating Cycles: -
- Contact Material: Nickel Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 40.0µin (1.02µm)
