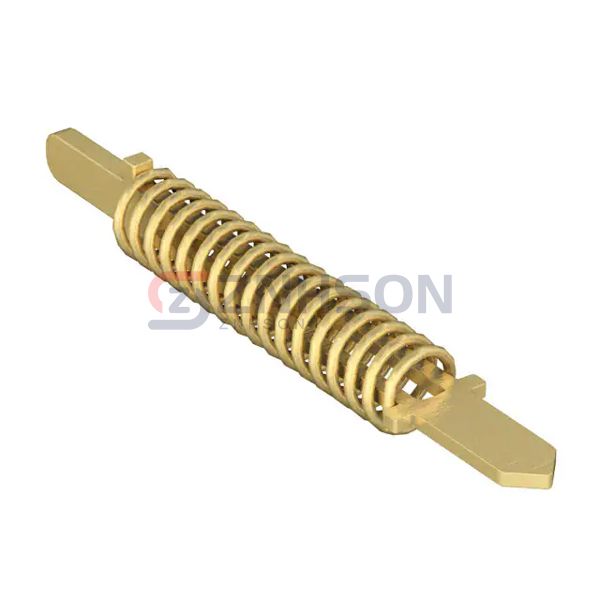

XP3B-3029-5050-1-R/R
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONTACT SPRING LOADED T/H GOLD
$2.01
Available to order
Reference Price (USD)
1+
$2.01000
500+
$1.9899
1000+
$1.9698
1500+
$1.9497
2000+
$1.9296
2500+
$1.9095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Omron Electronics Inc-EMC Div's XP3B-3029-5050-1-R/R represents the next evolution in Pressure Contacts technology, offering micro-miniature solutions down to 0.3mm diameter. These ultra-fine-pitch Spring Loaded Contacts enable high-speed signal transmission (up to 40GHz) for millimeter-wave testing and high-frequency PCB probing. The category distinguishes itself with ceramic-insulated variants for RF applications and temperature-compensated springs for thermal cycling environments. Critical uses include quantum computing research setups, phased array antenna testing, and microLED display repair stations. Specific deployments feature in satellite payload verification systems and neural probe interface boards. Choose XP3B-3029-5050-1-R/R when your application demands sub-millimeter precision with >1,000,000 cycle endurance.
Specifications
- Product Status: Obsolete
- Contact Type: Probe Pin
- Mounting Type: Through Hole
- Maximum Working Height: 0.112" (2.85mm)
- Recommended Working Height: 0.096" (2.45mm)
- Minimum Working Height: 0.093" (2.35mm)
- Pad Layout Dimension: -
- Operating Force - Initial: 25gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.002" ~ 0.008" (0.06mm ~ 0.20mm)
- Features: -
- Mating Cycles: 1000000
- Contact Material: Nickel Alloy
- Contact Finish: Gold
- Contact Finish Thickness: -
