YJL2305B-F2-0000HF
Yangzhou Yangjie Electronic Technology Co.,Ltd
Yangzhou Yangjie Electronic Technology Co.,Ltd
P-CH MOSFET 20V 5.4A SOT-23-3L
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The YJL2305B-F2-0000HF from Yangzhou Yangjie Electronic Technology Co.,Ltd redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the YJL2305B-F2-0000HF offers the precision and reliability you need. Trust Yangzhou Yangjie Electronic Technology Co.,Ltd to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 42mOhm @ 5.4A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.2 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 850 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: TO-236-3, SC-59, SOT-23-3
Related Products
IXYS
IXFK94N50P2
onsemi
NDD60N745U1T4G
Toshiba Semiconductor and Storage
SSM3K56ACT,L3F
onsemi
FQD19N10TM
Diodes Incorporated
DMN2310UTQ-13
Renesas Electronics America Inc
RJL6013DPP-00#T2
Diodes Incorporated
DMN2013UFDE-7
Rohm Semiconductor

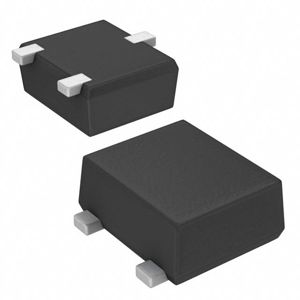

RUF015N02TL
