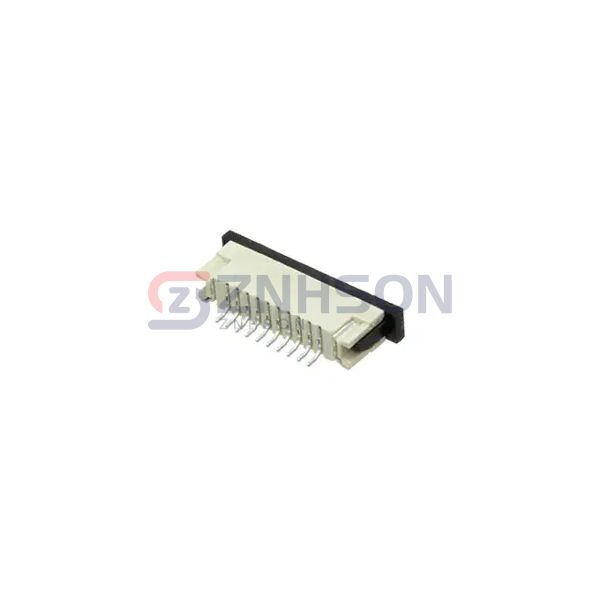

ZF1-10-01-T-WT
Samtec Inc.
Samtec Inc.
CONN FFC BOTTOM 10POS 1.00MM R/A
$1.19
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.69900
34+
$0.62912
68+
$0.55926
102+
$0.53588
272+
$0.48930
510+
$0.46600
1,020+
$0.38445
2,516+
$0.34950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Samtec Inc.'s ZF1-10-01-T-WT FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The ZF1-10-01-T-WT is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Samtec Inc.'s patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, ZF1-10-01-T-WT offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 10
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-2
