ZMM22BR13
Diotec Semiconductor
Diotec Semiconductor

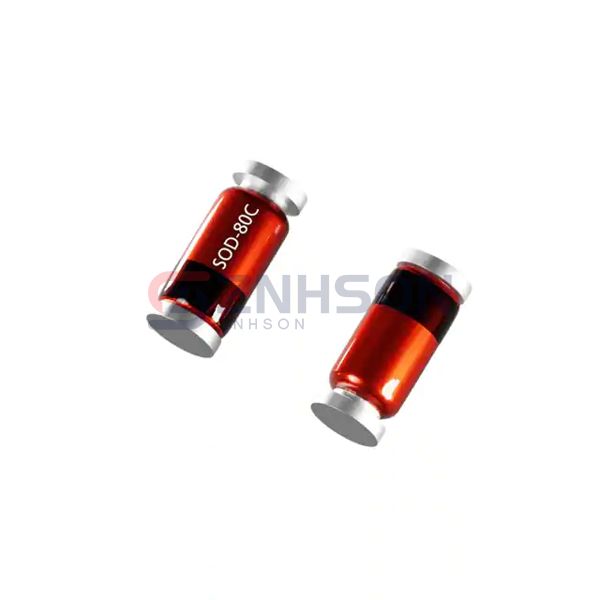

DIODE ZENER 22V 500MW SOD80C
$0.04
Available to order
Reference Price (USD)
1+
$0.03700
500+
$0.03663
1000+
$0.03626
1500+
$0.03589
2000+
$0.03552
2500+
$0.03515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ZMM22BR13 Zener diode from Diotec Semiconductor, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The ZMM22BR13 is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -50°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: SOD-80C
