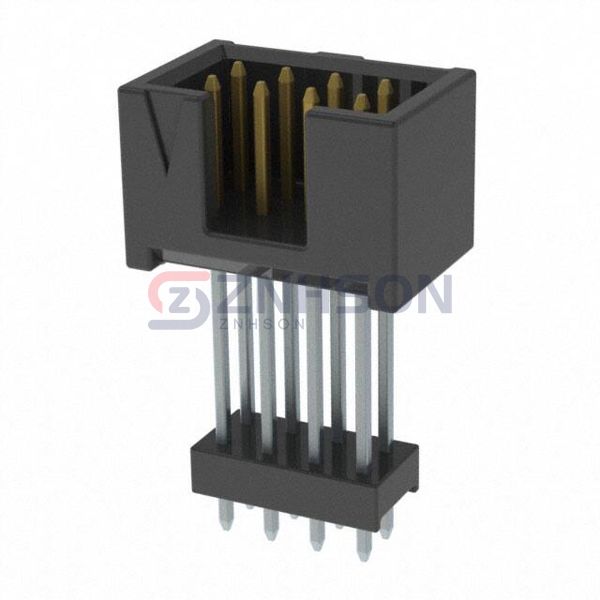

ZSS-104-04-S-D-840
Samtec Inc.
Samtec Inc.
CONN HDR .100" 8POS
$6.20
Available to order
Reference Price (USD)
1+
$6.20000
500+
$6.138
1000+
$6.076
1500+
$6.014
2000+
$5.952
2500+
$5.89
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-104-04-S-D-840 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.840" (21.34mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-125-12-F-D-K
Amphenol ICC (FCI)
77313-801-14LF
Samtec Inc.
TMM-137-01-G-D
Samtec Inc.
TSM-117-02-L-DV-LC-018
Samtec Inc.
EHT-113-01-L-D-SM
Amphenol ICC (FCI)
77317-812-56LF
Amphenol ICC (FCI)
54102-T10-01
Samtec Inc.
FTSH-110-04-S-DV-P-TR
TE Connectivity AMP Connectors

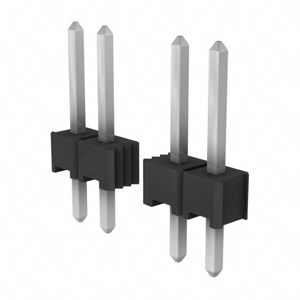

9-146282-0-27
