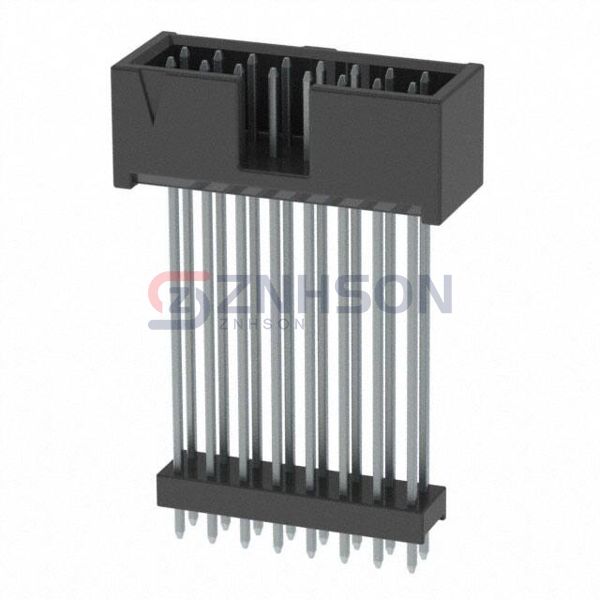

ZSS-108-09-T-D-1340
Samtec Inc.
Samtec Inc.
CONN HDR .100" 16POS
$3.04
Available to order
Reference Price (USD)
1+
$3.04000
500+
$3.0096
1000+
$2.9792
1500+
$2.9488
2000+
$2.9184
2500+
$2.888
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-108-09-T-D-1340 by Samtec Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Samtec Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 1.340" (34.04mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-103186-0-03
Samtec Inc.
TSM-113-03-SM-DV-A-P-TR
Preci-Dip
890-80-009-10-002101
TE Connectivity Deutsch Connectors
9-966140-6
Harwin Inc.
G125-MV12605L1P
Samtec Inc.

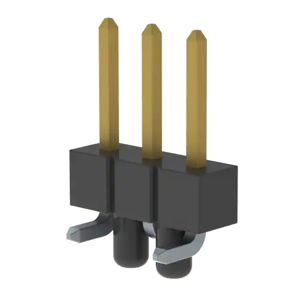

TSM-103-01-L-SV-A
