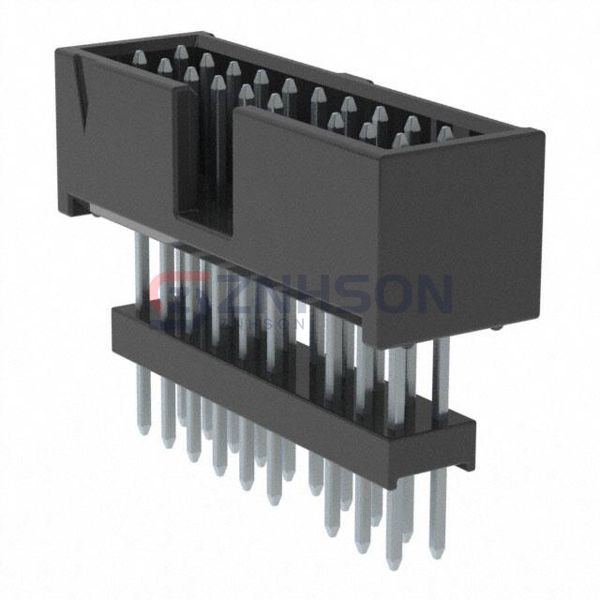

ZSS-110-03-T-D-650-07
Samtec Inc.
Samtec Inc.
CONN HDR .100" 20POS
$3.18
Available to order
Reference Price (USD)
1+
$3.18000
500+
$3.1482
1000+
$3.1164
1500+
$3.0846
2000+
$3.0528
2500+
$3.021
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the ZSS-110-03-T-D-650-07 rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the ZSS-110-03-T-D-650-07 meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: 19
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.180" (4.57mm)
- Overall Contact Length: 0.830" (21.08mm)
- Insulation Height: 0.650" (16.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (Commercial Products)
G881B12102KEU
Amphenol ICC (FCI)
95278-806A20LF
Samtec Inc.
FTMH-140-03-L-DV-A-P
Assmann WSW Components
AWHW 10A-0202-T
TE Connectivity AMP Connectors
4-102972-0-22
3M
929836-08-13
TE Connectivity AMP Connectors
9-146256-0-22
Adam Tech
BHR-30-VUA-ML
Samtec Inc.

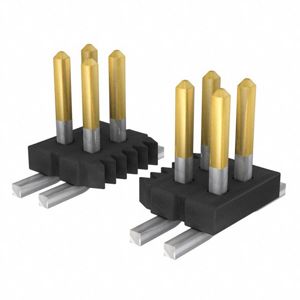

FTS-125-01-F-DV
