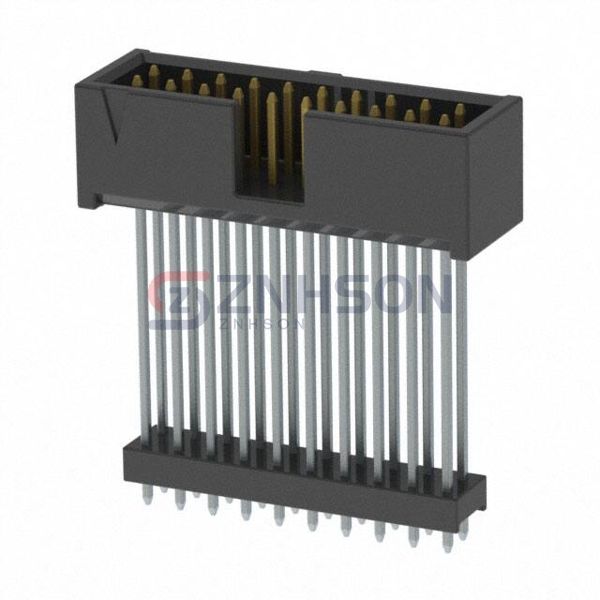

ZSS-110-07-S-D-1115
Samtec Inc.
Samtec Inc.
CONN HDR .100" 20POS
$8.04
Available to order
Reference Price (USD)
1+
$8.04000
500+
$7.9596
1000+
$7.8792
1500+
$7.7988
2000+
$7.7184
2500+
$7.638
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-110-07-S-D-1115 by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the ZSS-110-07-S-D-1115 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 1.230" (31.24mm)
- Insulation Height: 1.115" (28.32mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
