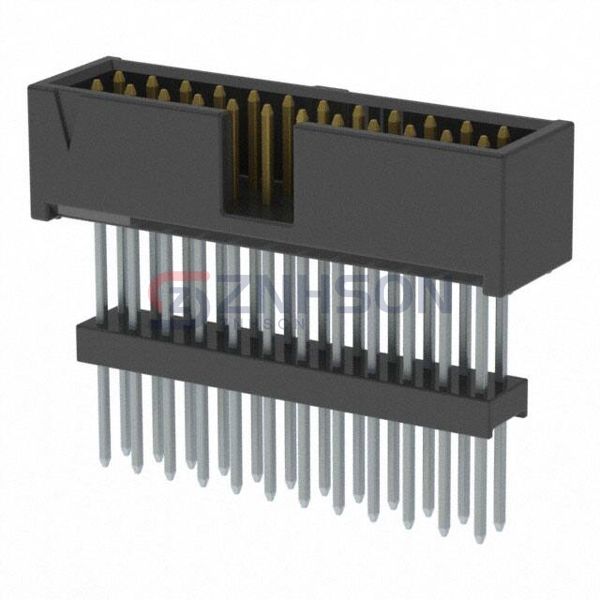

ZSS-112-05-S-D-720
Samtec Inc.
Samtec Inc.
CONN HDR .100" 24POS
$8.04
Available to order
Reference Price (USD)
1+
$8.04000
500+
$7.9596
1000+
$7.8792
1500+
$7.7988
2000+
$7.7184
2500+
$7.638
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-112-05-S-D-720 from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the ZSS-112-05-S-D-720 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.310" (7.87mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.720" (18.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-105-22-T-D-RA
Amphenol ICC (FCI)
68000-410HLF
TE Connectivity AMP Connectors
640499-2
Hirose Electric Co Ltd
A2-8PA-2.54DS(71)
Samtec Inc.
HTSW-128-08-G-D-LA
Samtec Inc.
TSM-119-01-L-DV-LC-P
Samtec Inc.

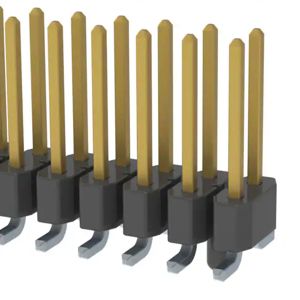

TSM-112-02-SM-DV-A-P
Samtec Inc.

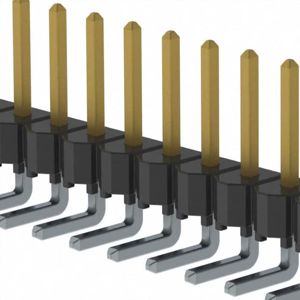

HTSW-124-08-L-S-RA
