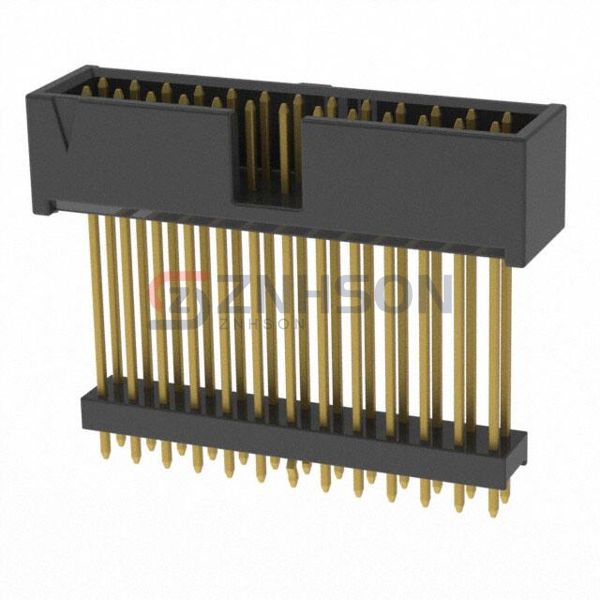

ZSS-113-06-G-D-1015-LL
Samtec Inc.
Samtec Inc.
CONN HDR .100" 26POS
$7.03
Available to order
Reference Price (USD)
1+
$7.03000
500+
$6.9597
1000+
$6.8894
1500+
$6.8191
2000+
$6.7488
2500+
$6.6785
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-113-06-G-D-1015-LL male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 1.130" (28.70mm)
- Insulation Height: 1.015" (25.78mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.

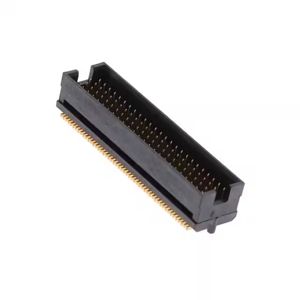

TOLC-125-12-S-Q-A
Samtec Inc.

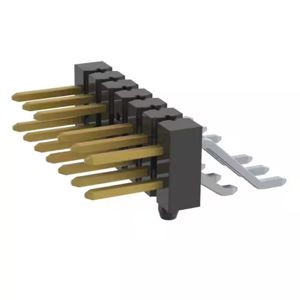

TSM-107-01-L-DH-A-008-P
Samtec Inc.

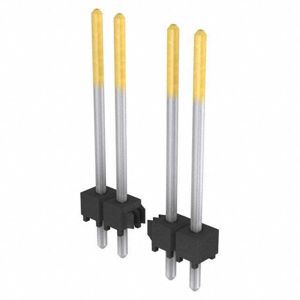

TSW-150-17-L-S
Preci-Dip

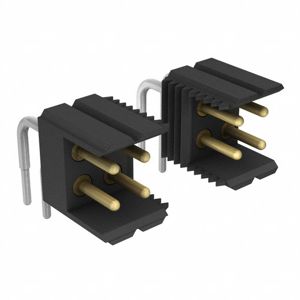

832-V3-026-22-002101
Samtec Inc.

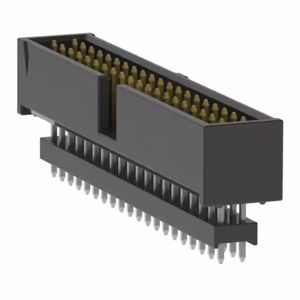

ZSS-120-01-L-D-530
Samtec Inc.

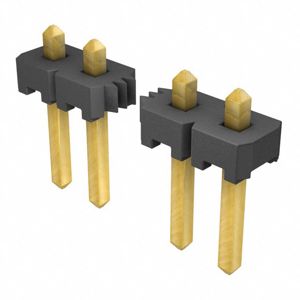

MTLW-120-05-G-S-150
TE Connectivity AMP Connectors
1-87221-0
TE Connectivity AMP Connectors

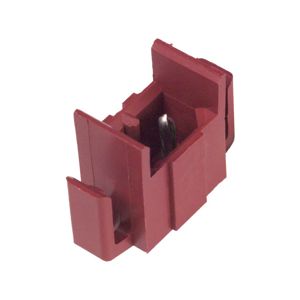

640497-1
