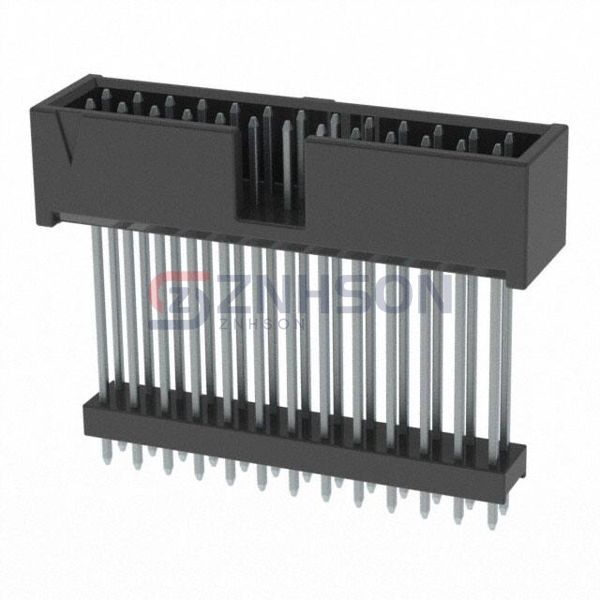

ZSS-113-06-T-D-1040
Samtec Inc.
Samtec Inc.
CONN HDR .100" 26POS
$3.86
Available to order
Reference Price (USD)
1+
$3.86000
500+
$3.8214
1000+
$3.7828
1500+
$3.7442
2000+
$3.7056
2500+
$3.667
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the ZSS-113-06-T-D-1040 rectangular connector header from Samtec Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the ZSS-113-06-T-D-1040 meets the highest industry standards. Samtec Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 1.130" (28.70mm)
- Insulation Height: 1.040" (26.42mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-102972-0-37
Amphenol ICC (FCI)
77313-801-08LF
Preci-Dip
802-10-036-10-002101
Samtec Inc.
TSM-106-01-LM-DH-K
Weidmüller
1419500000
Sullins Connector Solutions
SBH21-NBPN-D20-ST-BK
Samtec Inc.
TSM-107-01-T-DV-LC
Samtec Inc.

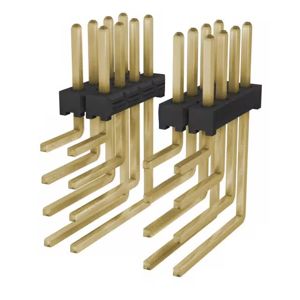

TMM-113-01-G-Q-RA
